Ultra Gateway
Critical Mass Systems’ modular entry-level equipment rack: a high-performance support system designed to grow with your audio system through upgradeable isolation filters and Center Stage footers.
Key Features
- Modular equipment-support architecture
- Fixed 12-inch clearance between levels
- 21.5 × 21.5-inch usable area on each level
- Natural stained Sapele construction
- Sandwich damping at shelf-and-frame contact points
- Aluminium-alloy feet, risers and top caps
- Surgical-grade titanium spikes and connectors
- Upgradeable with Sapphire 2, ULTRA PLATINUM or ULTRA DIAMOND isolation filters
- Compatible with Center Stage ULTRA component footers
- Compatible with LS 2.25 loudspeaker footers beneath the rack
- Designed to provide a progressive upgrade path within the Critical Mass Systems range
- Replaces the earlier Sotto Voce equipment rack
Design & Build
The ULTRA GATEWAY brings Critical Mass Systems’ approach to vibration management into an accessible, modular equipment rack. Its natural stained Sapele structure incorporates sandwich damping around the contact points between each shelf and the supporting frame.

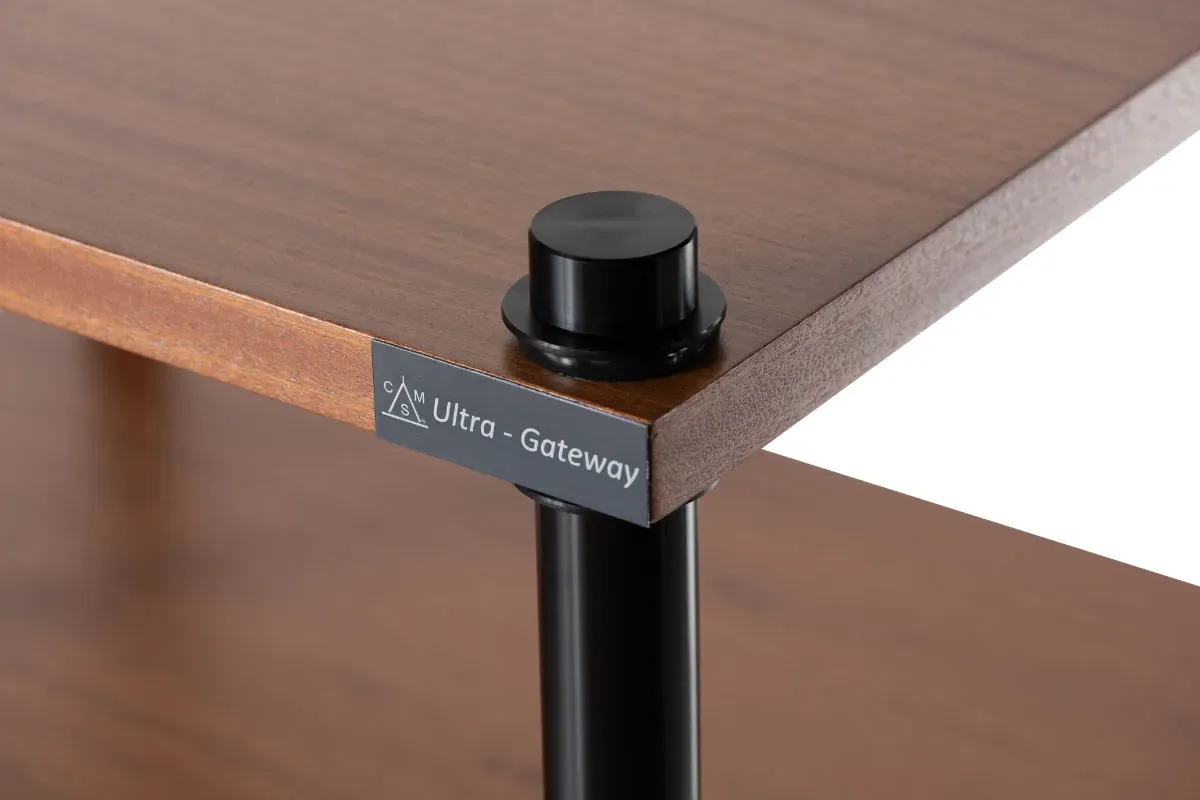

Aluminium-alloy feet, risers and top caps are combined with surgical-grade titanium spikes and connectors to create a rigid, mechanically grounded support structure. Its fixed dimensions provide predictable equipment clearance while allowing additional levels to be incorporated into a system configuration.
System Pairing
The ULTRA GATEWAY is designed for digital sources, turntables, preamplifiers, integrated amplifiers, power conditioners and other high-performance audio components that fit within its usable shelf dimensions.
Each level can be upgraded with a Critical Mass Systems Sapphire 2, ULTRA PLATINUM or ULTRA DIAMOND filter. Center Stage ULTRA TC, TD and TT footers can be added beneath individual components, while LS 2.25 footers may be installed beneath the rack to further enhance the performance of the complete support structure.
Technical Specifications
| Specification | Detail |
|---|---|
| Type | Modular high-performance audio equipment rack |
| Construction | Natural stained Sapele |
| Design | Modular, upgradeable architecture |
| Shelf damping | Sandwich damping around shelf-and-frame contact points |
| Feet, risers and top caps | Aluminium alloy |
| Spikes and connectors | Surgical-grade titanium |
| Overall width | 26.5 inches |
| Overall depth | 21.5 inches |
| Clearance between levels | 12 inches |
| Usable space per level (W × D) | 21.5 × 21.5 inches |
| Compatible isolation filters | Sapphire 2, ULTRA PLATINUM and ULTRA DIAMOND |
| Compatible component footers | Center Stage ULTRA TC, TD and TT |
| Compatible rack footers | Center Stage LS 2.25 |
| Upgrade capability | Isolation filters and Center Stage footers may be added separately |
| Predecessor | Sotto Voce |
