USB Cables

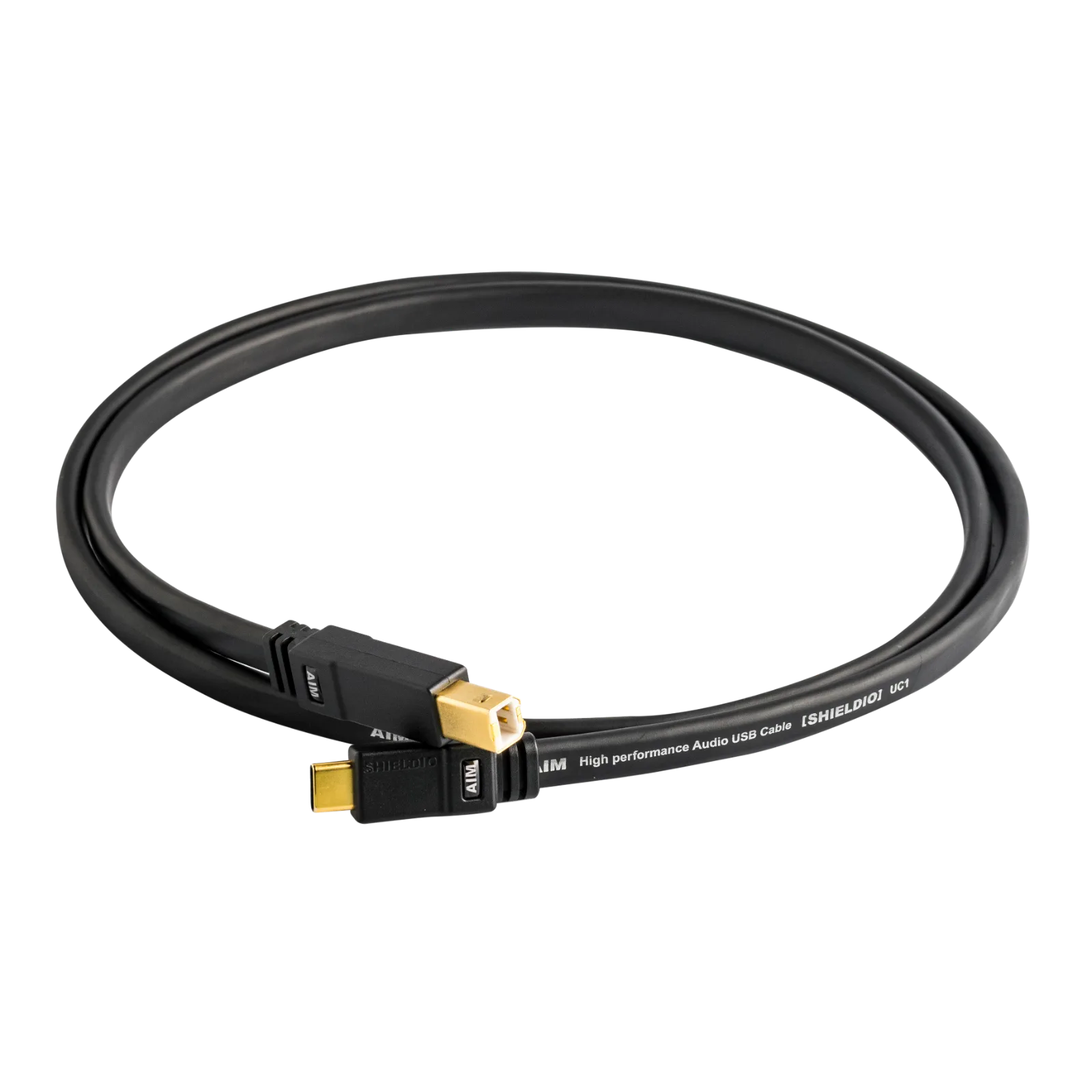

UC1 Audio USB cable
Features
Newly developed cable with optimal connector for TypeC / TypeB under the N-ZERO Concept.
Uses a oxygen-free copper hybrid conductor coated with pure silver.
A SP separate flat structure created to optimally control distance between the signal and power lines.
Mounts a filem stabilizer that produces powerful shielding effects and controls changes in characteristics.
Technical Specifications

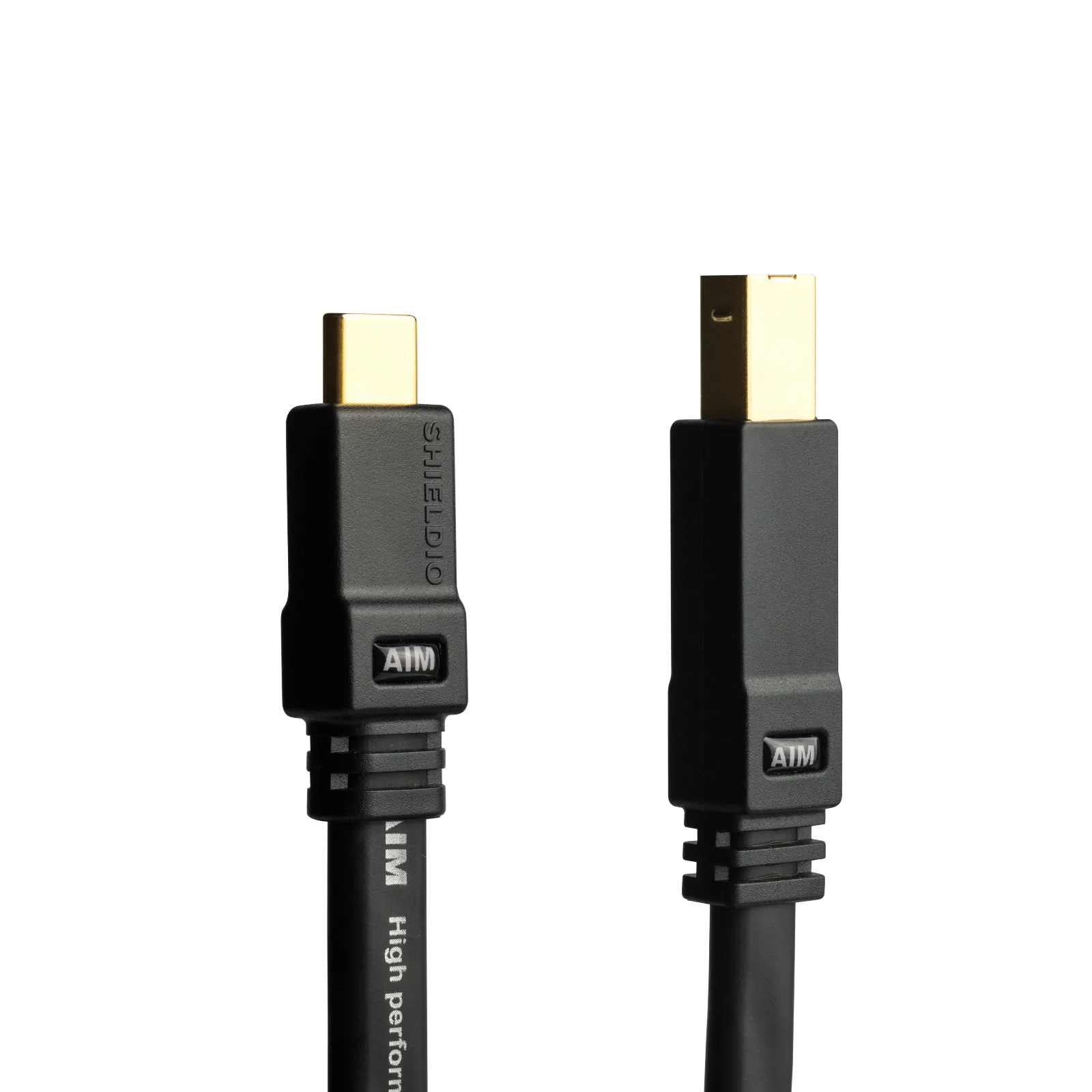

- Connector Type: USB "C"plug / USB "B"plug
- Contacts: Gold Plated
- Standards: USB 2.0(USB High/Full speed)
- Cable Size: 8.0mm x 4.5mm(Flat)
- Cable Color: Black
- Conductor Size: AWG21 & AWG26
- Number of conductor: Twisted Pair x 2(4pcs)
- Cable Shield: Highly Efficient Aluminum Shield + High Density Copper Braid
