Ethernet Cables

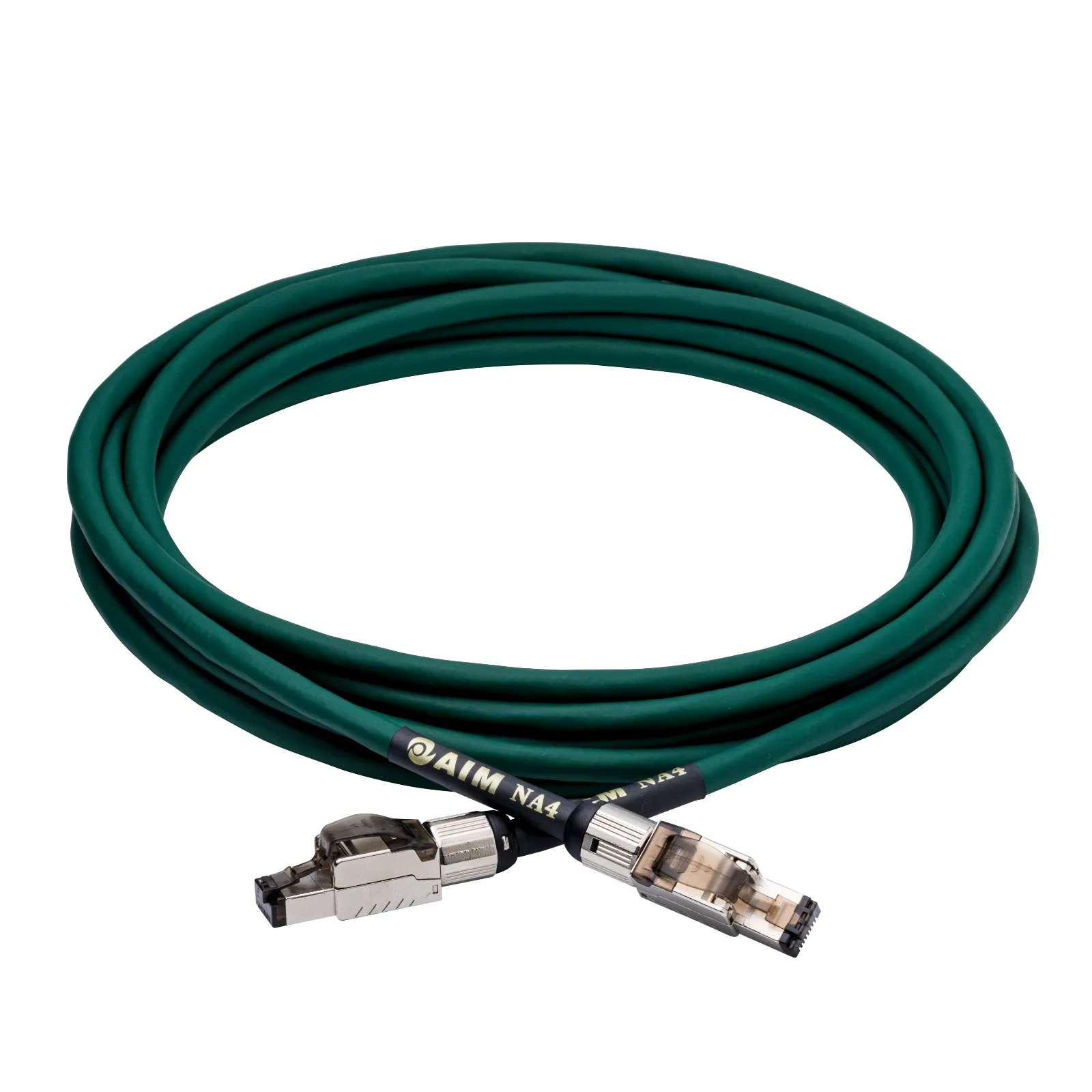

NA4 Advance Ethernet cable

Advanced Model Equipped with Triple-Layer Shielding for Superior Performance

Share this product

Uses newly developed high-purity oxygen-free copper conductors.

Achieves excellent EMI control through high-performance double layered aluminum shielding and high-density copper braided shielding.

Equipped with noise-resistant die-cast modular connectors

Technical Specifications

Connector: 8P8C Modular connector(RJ45)
Connector Size: W13.8mm x H55.6mm x D18.4mm
Connector Structure: Diecast design with high resistance to electromagnetic interference
Standard: Compliant with ANSI/TIA/EIA-568B and IEC 60603-7-5
Outside Diameter: 7.1Φ(mm)
Cable Color: Green
Conductor: Single line (AWG24)
Number of conductor: Twisted Pair x 4(8)
Conductor Material: OFC (high pure oxygen free copper)

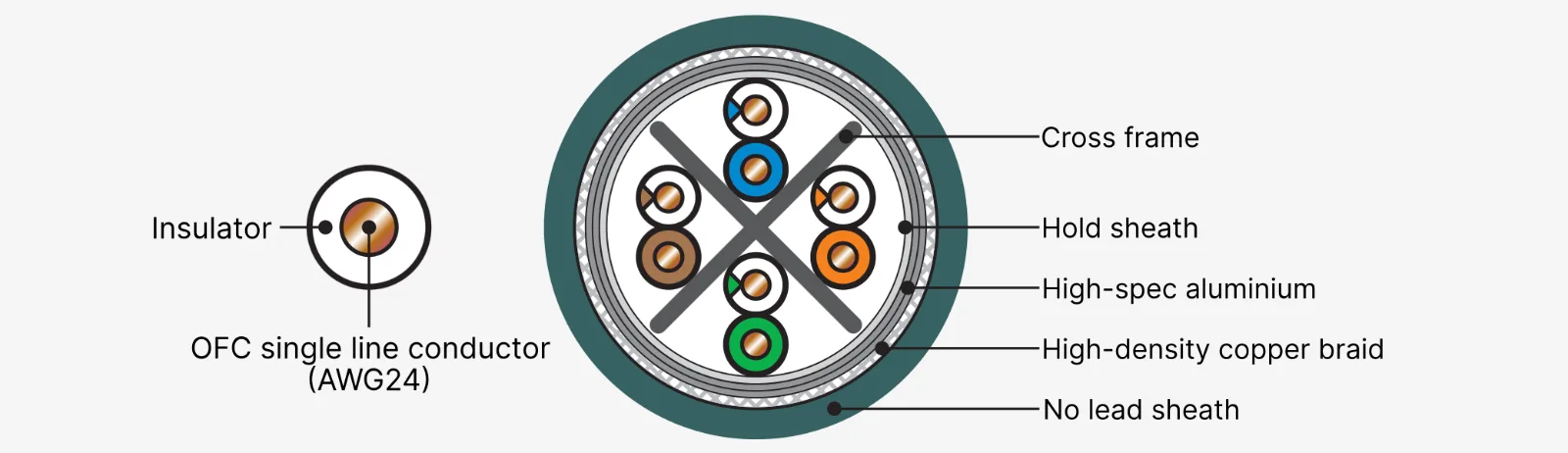

Shielding Structure: High spec double layered aluminum shield
Braided Shield: High density copper braided shield
Internal Structure: Cross frame
Drain Wire: Symmetric
