HDMI Cables

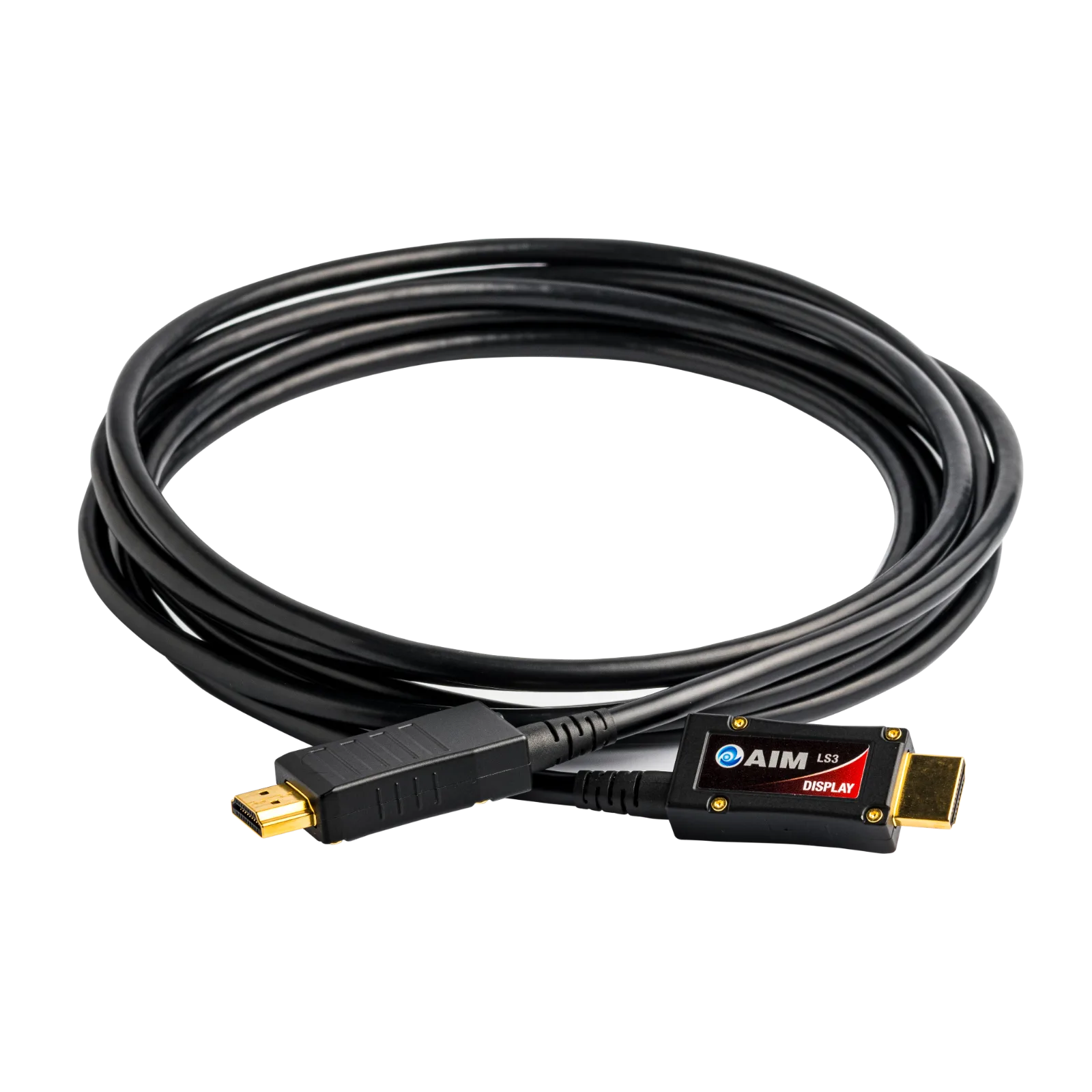

LS3 Ultra High Speed Laser cable

Share this product

Supports the newest HDMI standard transmission speed of 48Gbps for 8K resolution and HDR10+.

Transmits high resolution video through the quartz optical fiber without electromagnetic interference.

Equipped with hybrid circuit managed that no external power supply required.

Technical Specifications

Maximum Resolution: 10K/120p *1 8K/60p 36bit(4:2:0)
Connector: 24K gold plated
Connector Size: W20.6mm x H10.8mm x D40.3mm
Outer Diameter of the cable: 5.7Φ(for all models)
Cable Conductor: Optical fiber for FRL signal line, other lines are copper wire
Shield: Double layered aluminum shield
Bend Radius: 20mm
Cable Color: Black
Insulator: PVC
Cable Configuration: Hybrid of quartz fiber and copper wire
External Power Supply: Power Supply jack into the HDMI connector on each of the source and display sides *2
HDMI Control Functions: HEC not supported
