Ethernet Cables

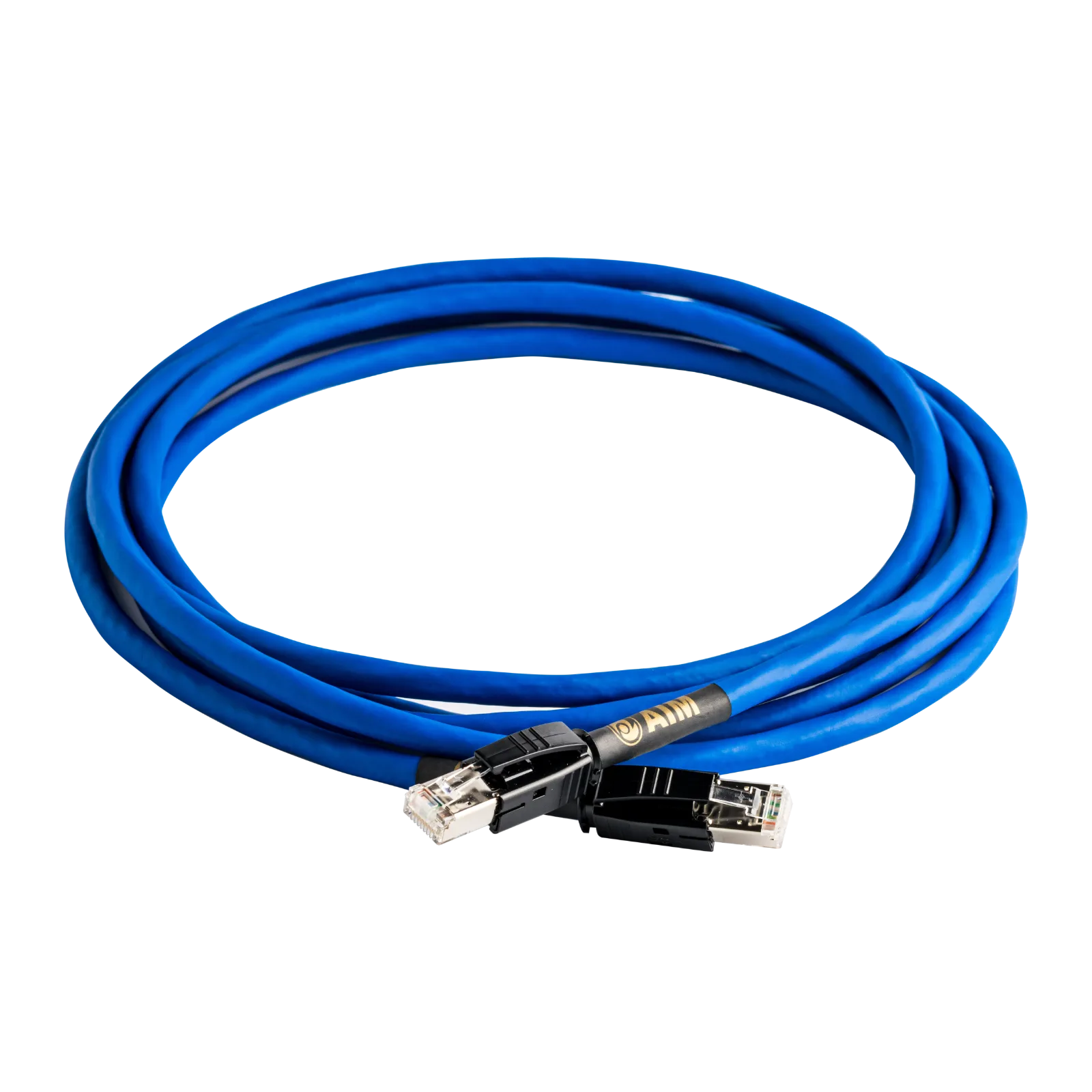

NA2 Basic Ethernet cable
Features
Highly cost-effective made both quality and sound at a high level.

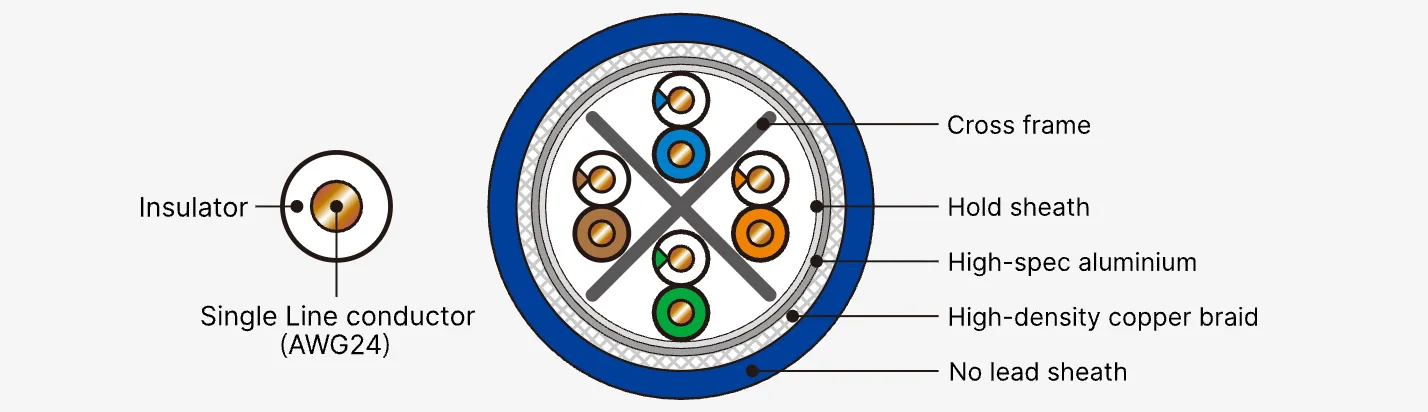

Equipped with a cross frame adopted also in the flagship model,High transmission characteristics realized in a wide frequency range.
Developed perfect Electromagnetic Interference control with high performance shielding inside the cable and modular connector.
Technical Specifications
- Connector: 8P8C Modular connector(RJ45)
- Connector Size: W13.9mm x H43.0mm x D15.7mm
- Connector Structure: Hard polycarbonate housing & brass nickel plating
- Standard: Compliant with ANSI/TIA/EIA-568-B & IEC 60603-7-5
- Outside Diameter: 7.1Φ(mm)
- Cable Color: Blue
- Conductor: Single Line AWG24
- Number of conductor: Twisted Pair x 4(8)
- Shield Structure: High Spec aluminum
- Shield: High-density copper braid
- Drain Wire: Symmetric
