HDMI Cables

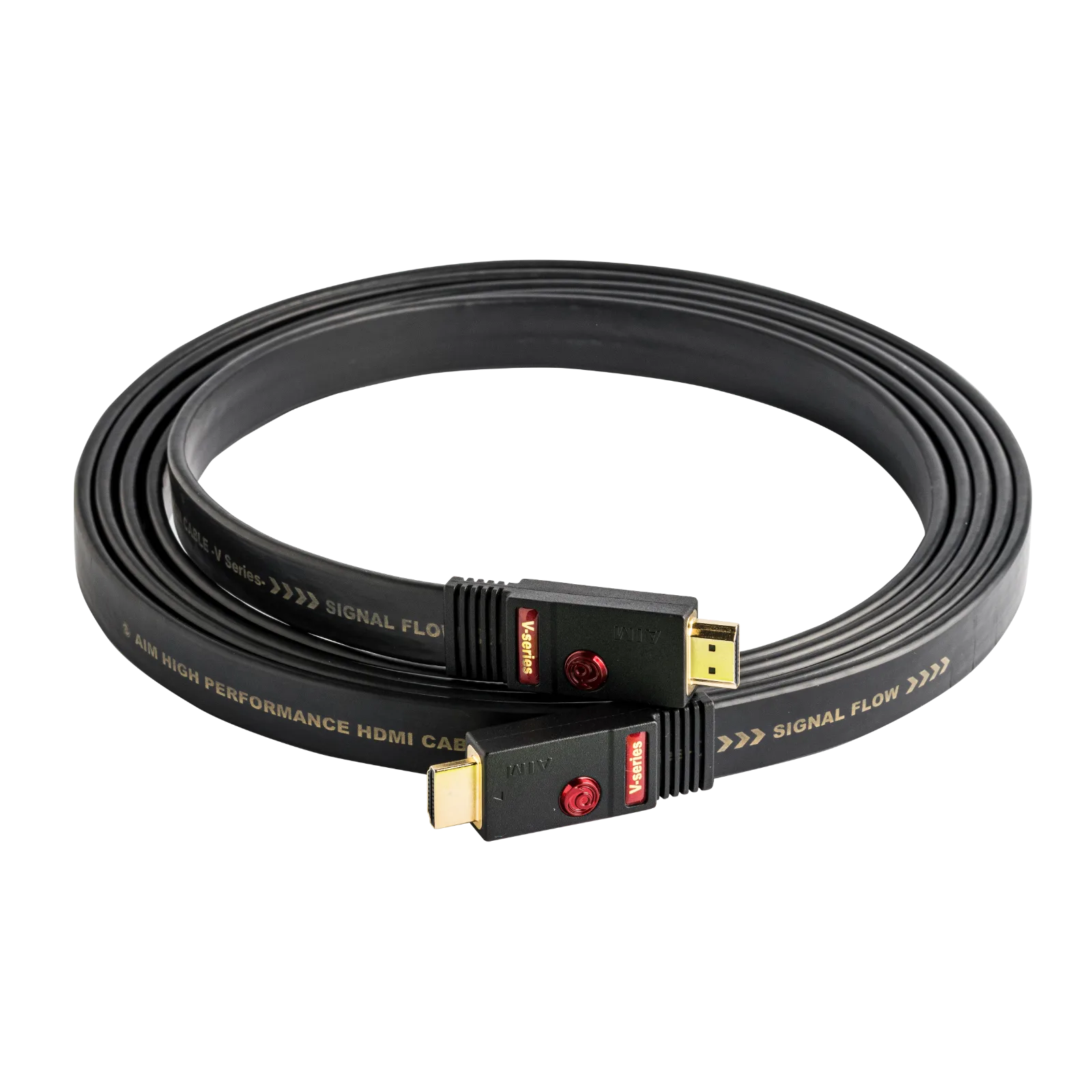

FLV Ultra High Speed Flat cable

Share this product

Passive design achieved its highest standard of 8K 48Gbps absolute performance.*

Utilizing a new flat structure improved extream boundary.

Demonstrate enhanced Electromagnetic Interference reduction properties with

PULSHUT®MU(Asahi Kasei Corporation) attached to the back side of the connector.

Technical Specifications

Maximum Resolution: 10K/120p* 8K/30p 36bit（4:4:4）
Connector: 24K gold plated and die cast zinc alloy
Connector Size: W20.8mm x H52.0mm x D11.3mm
Cable Size: W18.0mm x H4.0mm
Cable Conductor: OFC(Oxygen-free copper)（5N） + Pure silver plated
Shield: High density braided, high performance aluminum shield(Quad Shield2)
Cable Color: Black
Insulator: FM-PE + SKIN(Double layered structure:High performance expanded)
Cable Structure: Shortened the internal conductor a flat structure
External Power Supply: Not necessary
