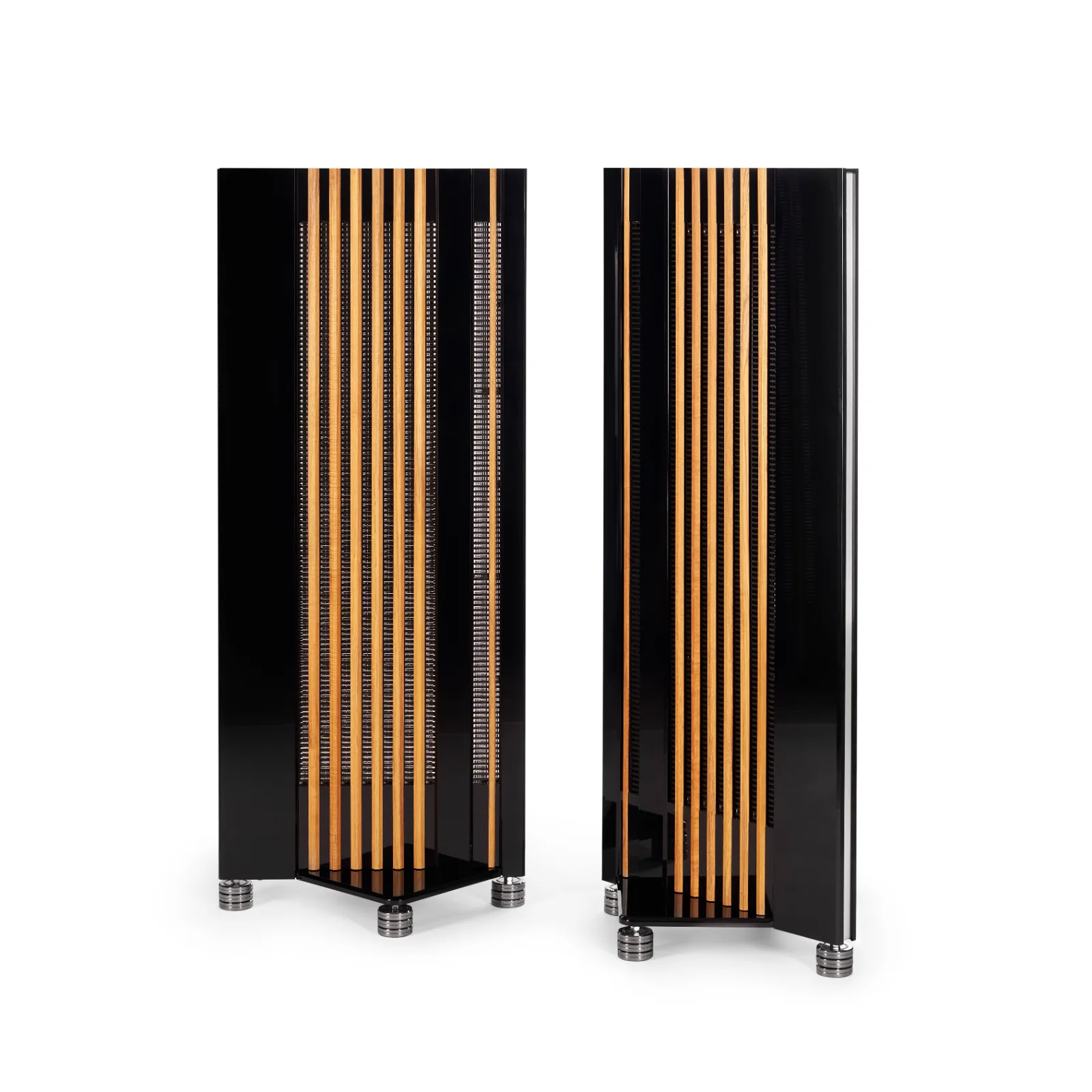

Tintoretto Full-Range Ribbon Loudspeaker
Alsyvox’s compact ribbon planar model uses the same premium components as larger models, designed for smaller rooms from 15 to 50 sqm without compromise.
The two panels size is 0.58m (23″) wide and 1.44m (57″) height, with a total of 0.6sqm (6.5sqft) woofer surface on the two channels and weight of 85Kg (189lb) per channel.
High sensitivity of 93dB makes possible to use virtually any amplifier.
It is possible to upgrade Tintoretto to Tintoretto X or Tintoretto XX buying the 2 black acrylic passive external crossovers, just like Botticelli.
Technical Specifications
- Model: TINTORETTO
- Speaker Height: 1,440 mm
- Baffle Width: 580 mm
- Recommended Room Width: 3–6 m
- Baffle Thickness: 54 mm
- Woofer / Midrange / Tweeter / Super Tweeter Height: 1.09 m
- Number of Woofers: 1
- Woofer Width: 280 mm
- Woofer Surface Area: 3,052 cm²
- Woofer Maximum Stroke: 18 mm
- Woofer Air Volume: 5,494 cm³
- Midrange Width: N/A
- Mid-Tweeter Width: 25 mm
- Super Tweeter Width: 5 mm
- Reference Sensitivity: 93 dB
- Crossover Frequencies: 750–5,000 Hz
- Frequency Response: 25–40,000 Hz
- Nominal Impedance: 4 Ω
- Weight: 85 kg per channel, excluding external crossover
