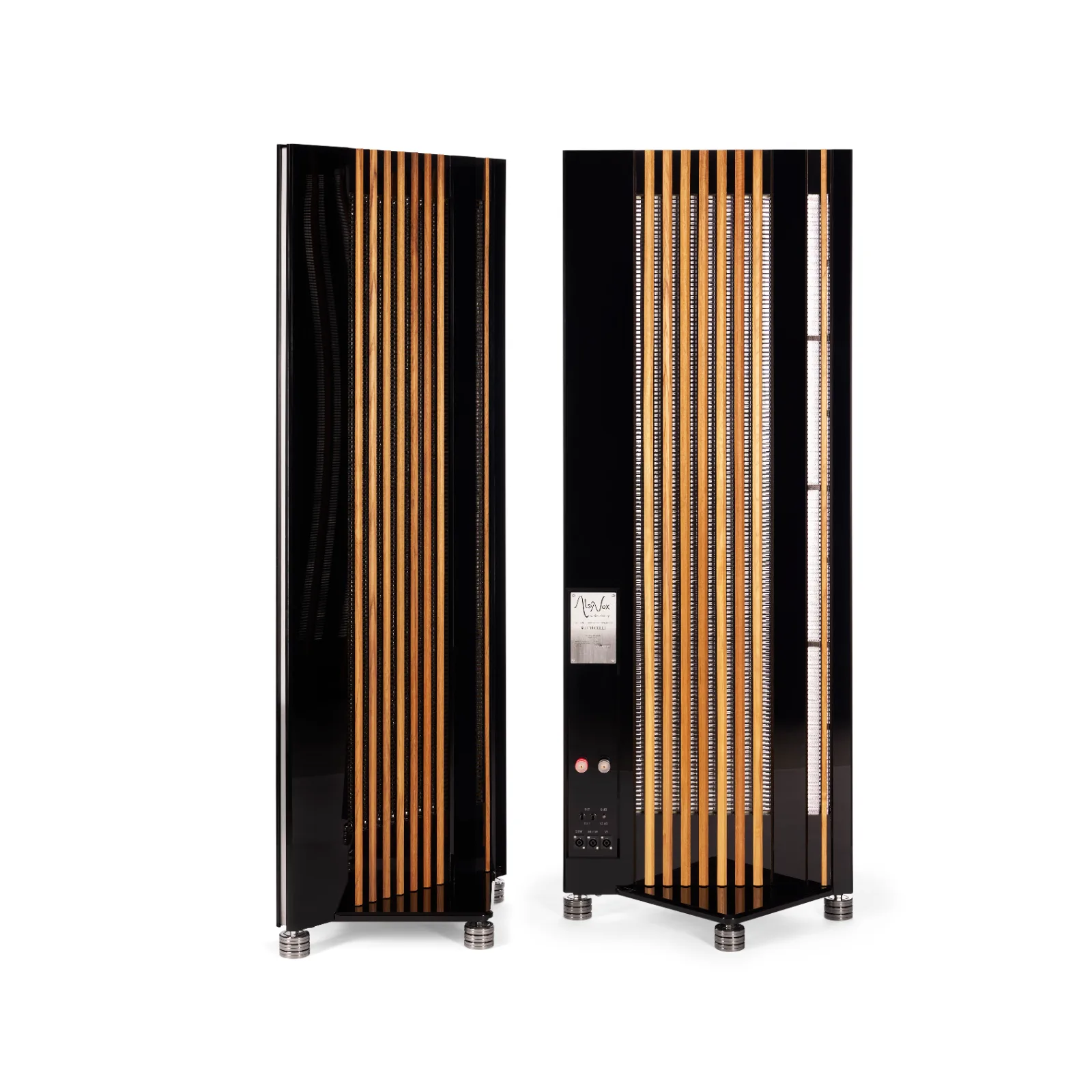

Botticelli Full-Range Ribbon Loudspeaker
Alsyvox Botticelli is a reference ribbon planar loudspeaker for medium-sized rooms, delivering uncompromised performance in spaces from 25 to 100 sqm.
The two panels size is quite classical: 0.64m (25″) wide and 1.77m (70″) height, with a total of 0.9sqm (10sqft) woofer surface on the two channels and weight of 115Kg (255lb) per channel.
High sensitivity of 94dB makes possible to use virtually any amplifier.

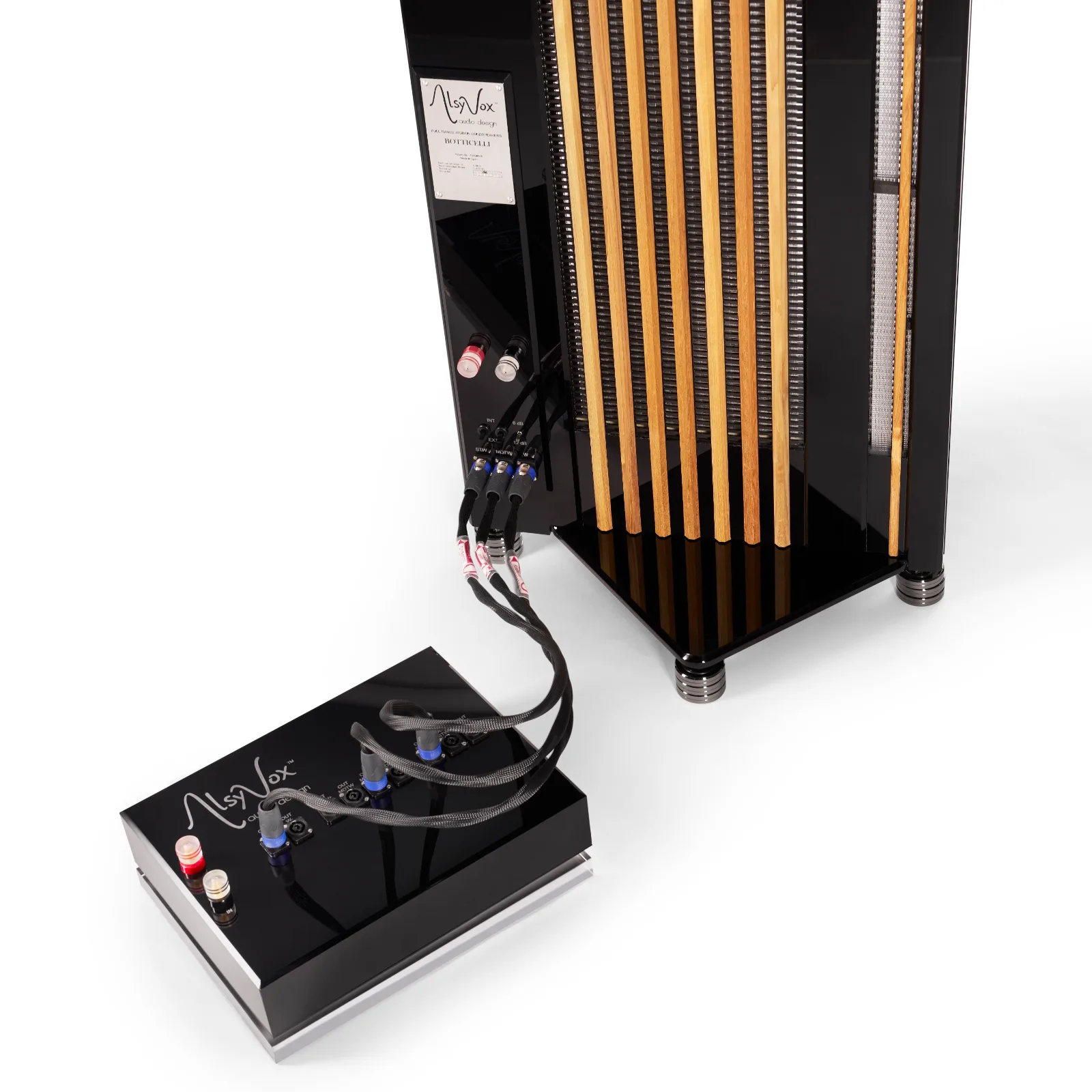

It is possible to upgrade to Botticelli X or XX buying the two external passive crossovers using an exclusive topology and bigger/higher quality components, connecting cables between speaker and crossover are included. X external crossovers are 430x330x130mm each weight 25Kg including the transparent acrylic base, XX external crossovers are 680x450x130mm each weight 45Kg including the transparent acrylic base. XX version is using even bigger and higher quality components and connecting cables compared to X version and the result is higher resolution and transparency, it is like upgradind the speakers by one or two levels.
Technical Specifications
- Model: BOTTICELLI
- Speaker Height: 1,770 mm
- Baffle Width: 640 mm
- Recommended Room Width: 4–7 m
- Baffle Thickness: 54 mm
- Woofer / Midrange / Tweeter / Super Tweeter Height: 1.42 m
- Number of Woofers: 1
- Woofer Width: 320 mm
- Woofer Surface Area: 4,544 cm²
- Woofer Maximum Stroke: 20 mm
- Woofer Air Volume: 9,088 cm³
- Midrange Width: N/A
- Mid-Tweeter Width: 25 mm
- Super Tweeter Width: 5 mm
- Reference Sensitivity: 94 dB
- Crossover Frequencies: 750–5,000 Hz
- Frequency Response: 22–40,000 Hz
- Nominal Impedance: 4 Ω
- Weight: 115 kg per channel, excluding external crossover
