Raffaello Full-Range Ribbon Loudspeaker

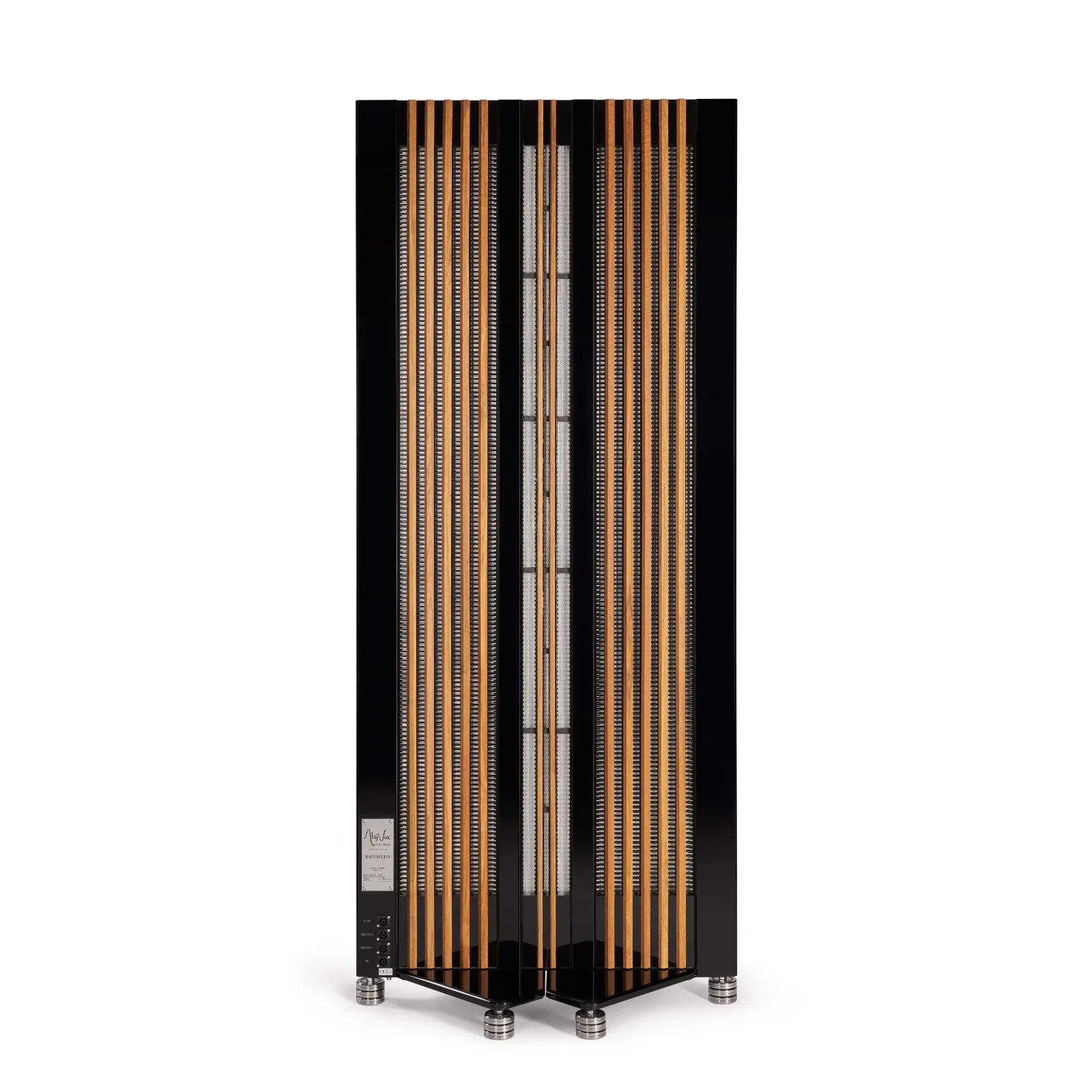

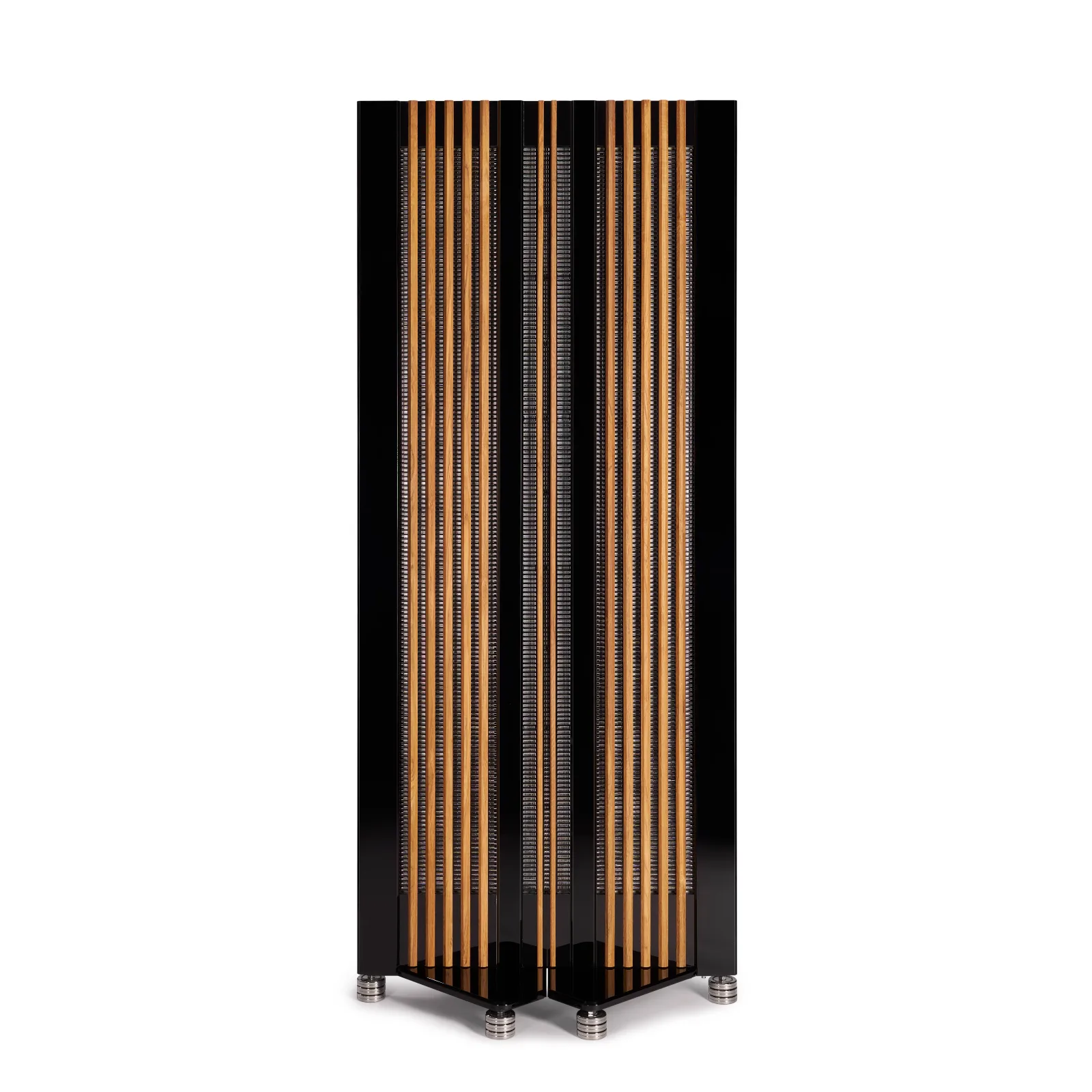

Alsyvox Raffaello is an exclusive made-to-order ribbon planar loudspeaker with a symmetrical design, dual woofers, dual mid-tweeters and central super-tweeter.
This is making a total width of 0.85m (33.5″) each channel with a total height of 2.03m (80″), a weight of 180Kg (400lb) per channel excluding crossovers and a total woofer surface of about 1.7 sqm (19sqft) on the two channels.
The symmetrical design brings better interaction with room walls and better imaging.
Also double transducers allow higher dynamics and resolution.
It is possible to add subwoofer panels, same as CARAVAGGIO.

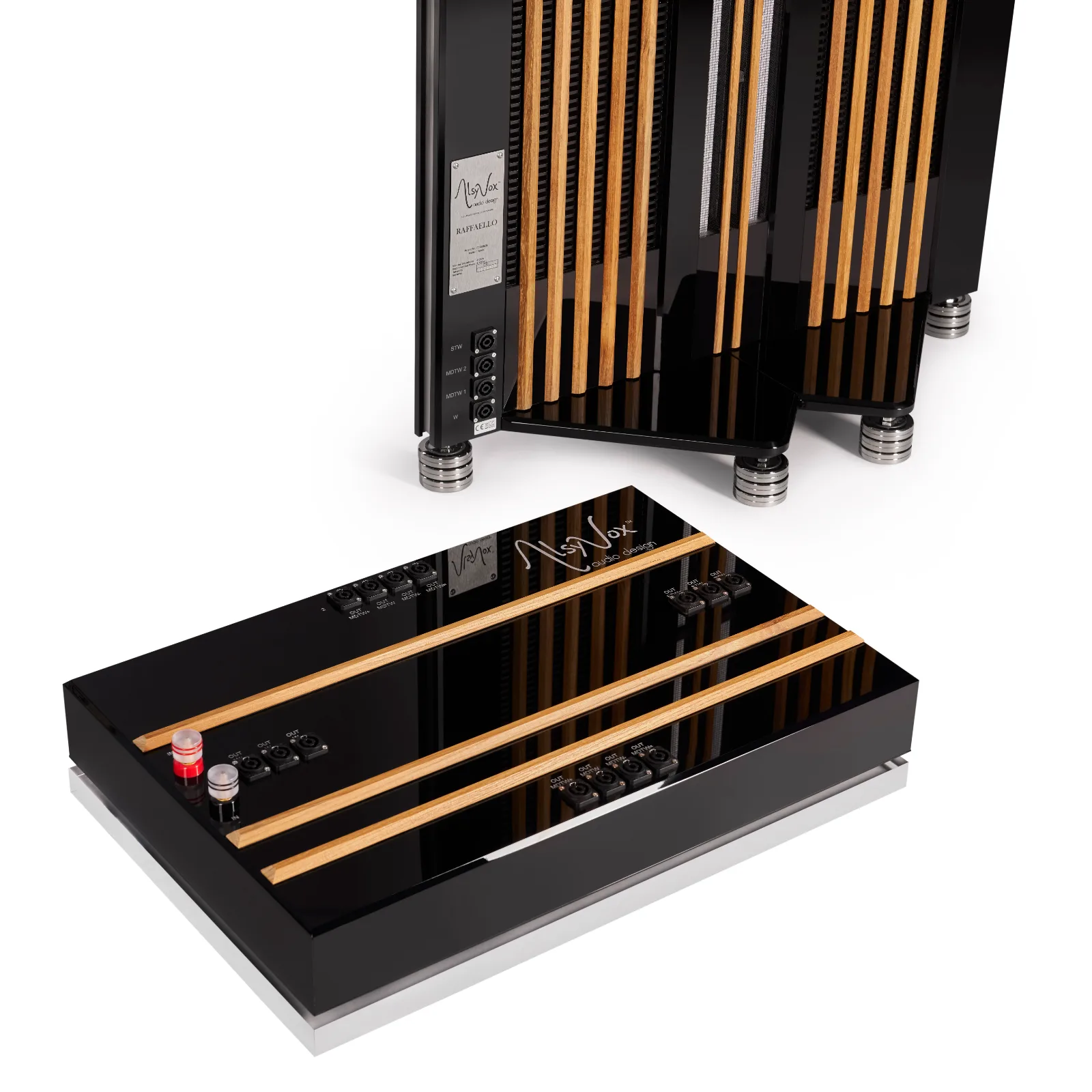

It comes with 2 separate acrylic passive crossovers using an exclusive topology, connecting cables between crossover and speaker are included. These are XX quality as standard, dimensions 680x450x130mm weight 50Kg each including transparent acrylic base.
High sensitivity of up to 98dB makes possible to use virtually any amplifier.
It is recommended for rooms bigger than 50sqm (550sqft) and wider than 5.5m (18ft).
Technical Specifications
- Model: RAFFAELLO
- Speaker Height: 2030 mm
- Baffle Width: 850 mm
- Recommended Room Width: 5–8.5 m
- Baffle Thickness: 54 mm
- Woofer / Midrange / Tweeter / Super Tweeter Height: 1.68 m
- Number of Woofers: 2
- Woofer Width: 250 mm × 2
- Woofer Surface Area: 8,400 cm²
- Woofer Maximum Stroke: 17 mm
- Woofer Air Volume: 14,280 cm³
- Midrange Width: N/A
- Mid-Tweeter Width: 25 mm × 2
- Super Tweeter Width: 9 mm
- Reference Sensitivity: 97 dB
- Crossover Frequencies: 750–4,500 Hz
- Frequency Response: 25–40,000 Hz
- Nominal Impedance: 4 Ω
- Weight: 180 kg per channel, excluding external crossover
