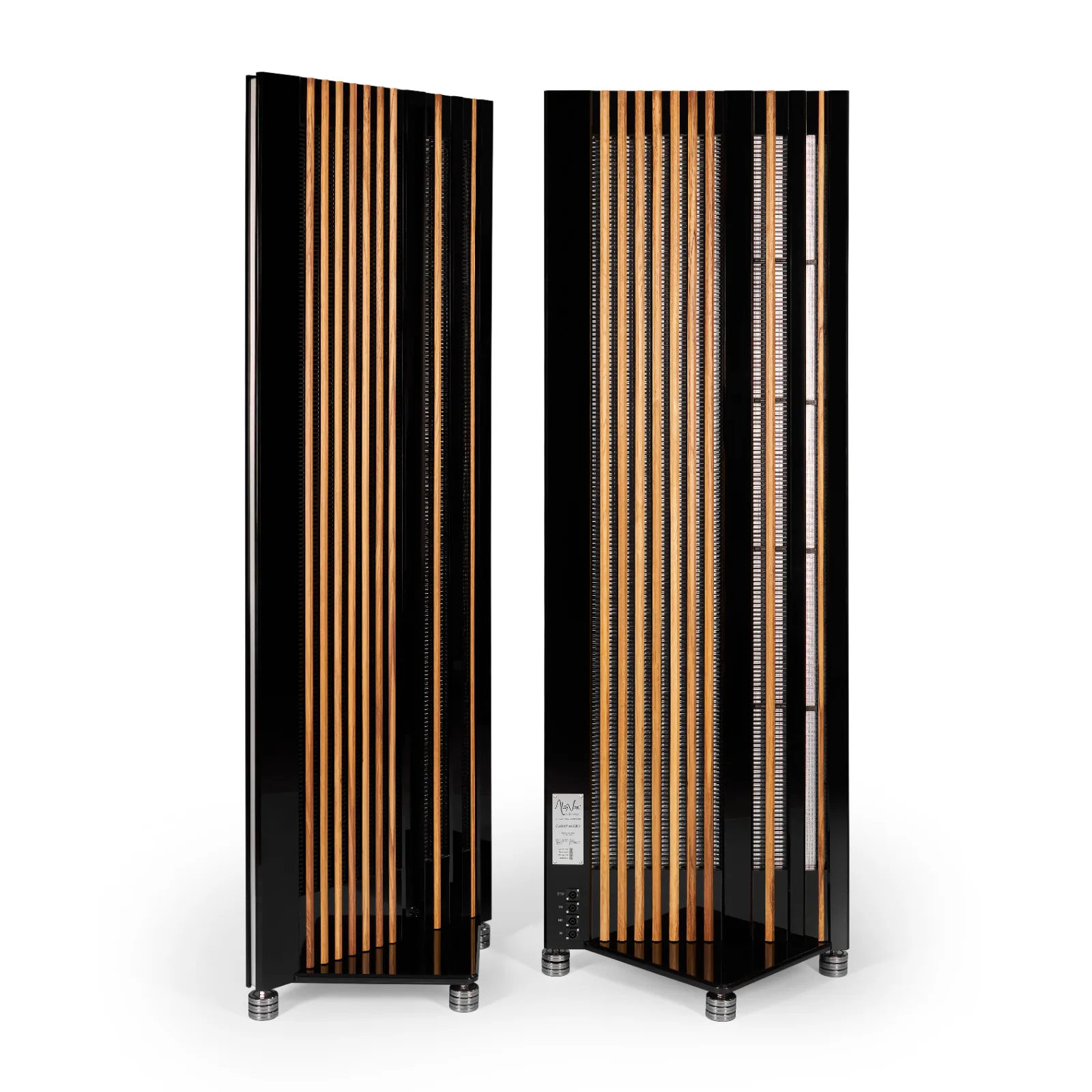

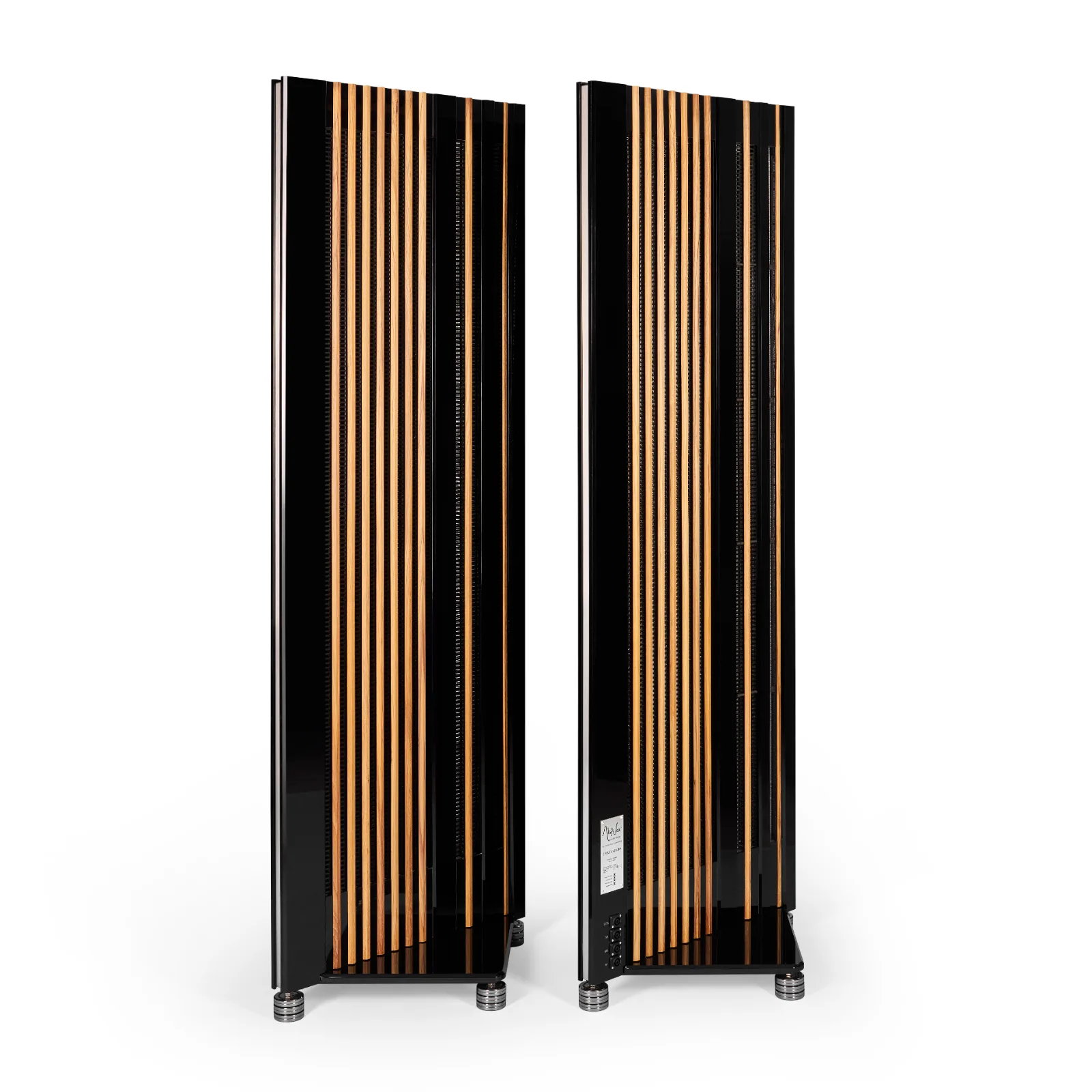

Caravaggio Full-Range Ribbon Loudspeaker
Alsyvox Caravaggio is an exclusive made-to-order 4-way ribbon planar loudspeaker with woofer, midrange, tweeter and super-tweeter on one panel.

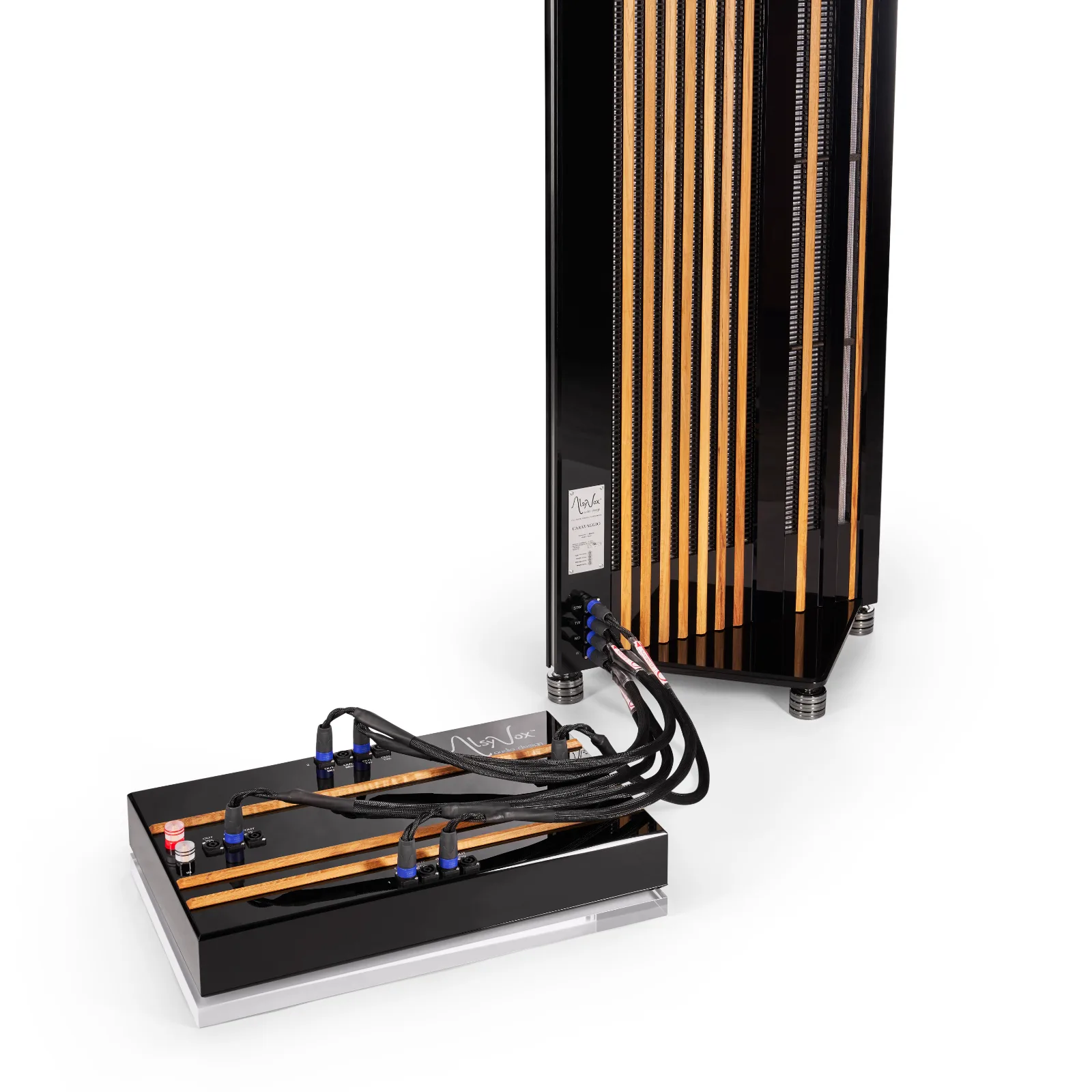

Its width is 0.69m (27″) with a total height of 2.03m (80″), a weight of 165Kg (367lb) per channel excluding crossovers and a woofer surface of more than 1 sqm (11sqft) on the two channels. It comes with 2 acrylic external passive crossovers using exclusive topology, connecting cables between speaker and crossover are included. These standard crossovers have dimensions of 510x330x130mm weight 30Kg including acrylic transparent base and are using same quality components to X crossovers for Botticelli or Tintoretto, also XX quality is available on request with a size of 680x450x130mm weight 50Kg each. Difference is clearly audible with higher resolution and transparency, like upgrading the speakers by one or two levels.
Also a separate dedicated subwoofer panel (one each channel) is available and it is recommended only in very big rooms from 80sqm (800sqft).
High sensitivity of 94dB makes possible to use virtually any amplifier.
It is recommended for rooms of 40sqm (400sqft) to 120sqm (1200sqft).
Technical Specifications
- Design: 4-way ribbon planar loudspeaker
- Speaker Height: 2,030 mm
- Baffle Width: 690 mm
- Baffle Thickness: 54 mm
- Recommended Room Width: 4.5–7.5 m
- Woofer / Midrange / Tweeter / Super Tweeter Height: 1.68 m
- Number of Woofers: 1 per channel
- Woofer Width: 320 mm
- Woofer Surface Area: 5,376 cm²
- Woofer Maximum Stroke: 20 mm
- Woofer Air Volume: 10,752 cm³
- Midrange Width: 35 mm × 2
- Mid-Tweeter Width: 25 mm
- Super-Tweeter Width: 5 mm
- Reference Sensitivity: 94 dB
- Crossover Frequencies: 500 / 1,500 / 5,000 Hz
- Frequency Response: 20 Hz–40 kHz
- Nominal Impedance: 4 Ω
- Weight: 165 kg per channel, excluding external crossover
