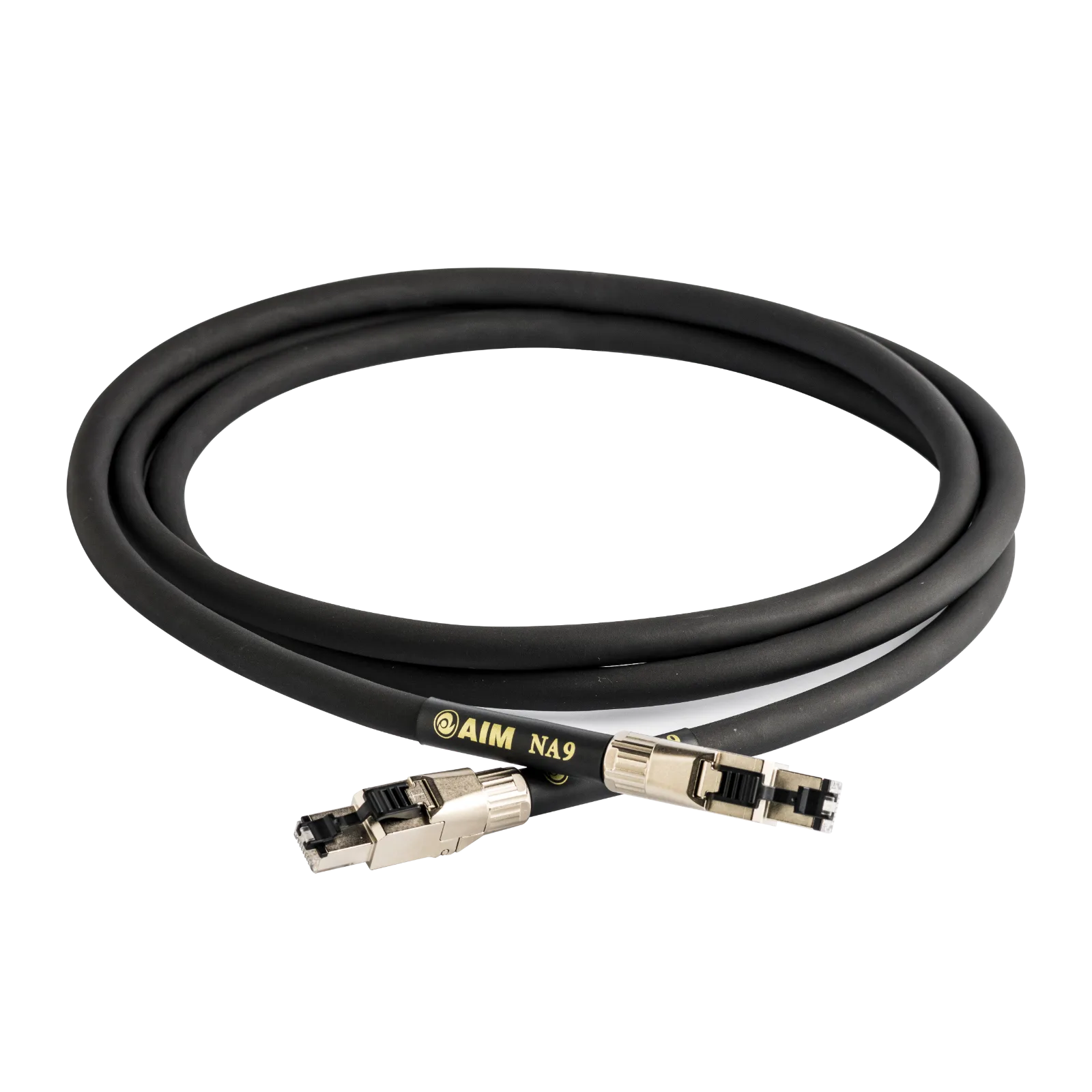

NA9 Flagship Ethernet cable
Features
New development "Hoplon", combining 4 different materials of layers shielding structure.
Uses Asahi Kasei Corporation's Electromagnetic Interference suppression sheet PULSHUT®MU for each twisted pair cable.
Dedicated development of inner sheath that formulated with conductive functional material.

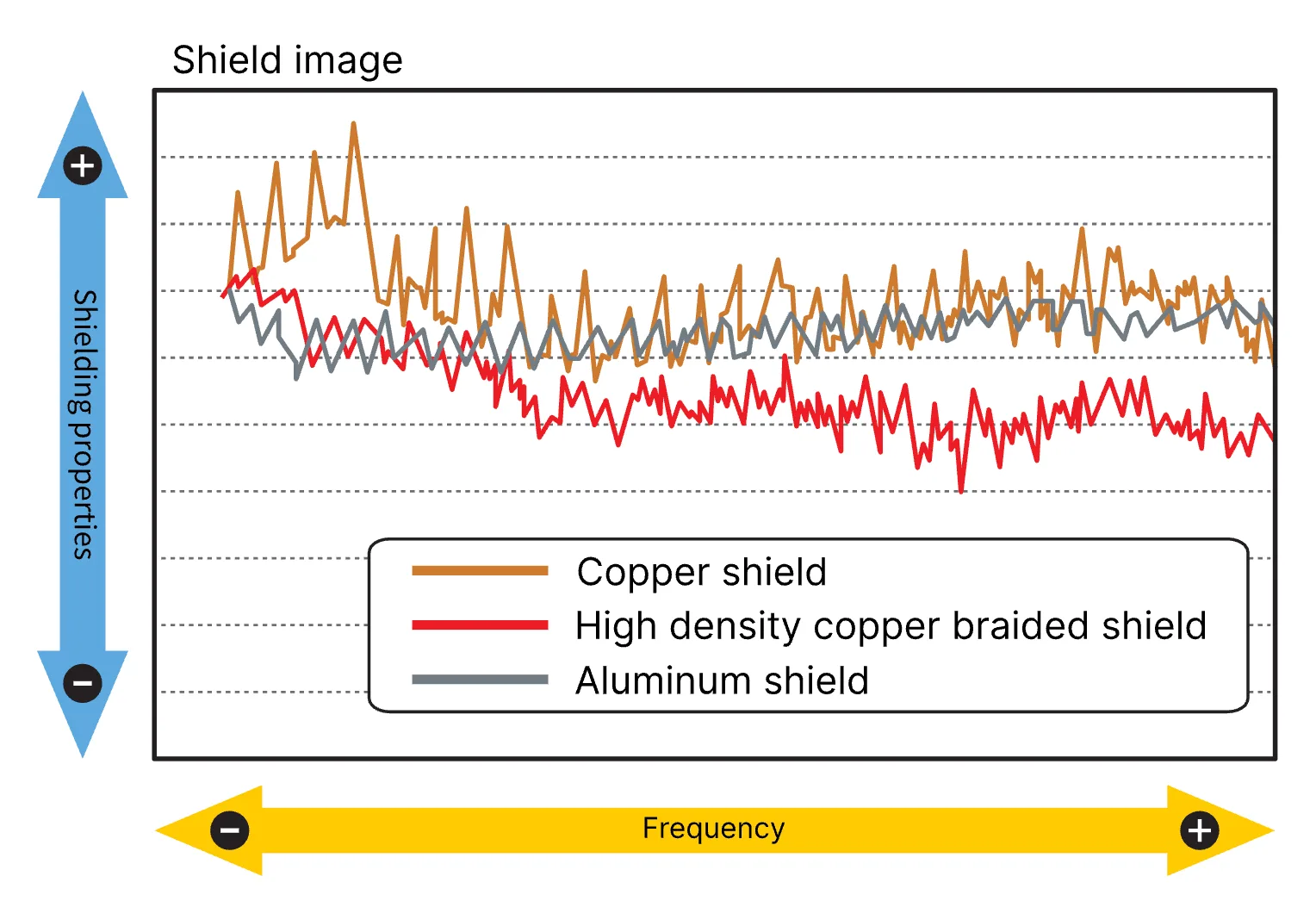

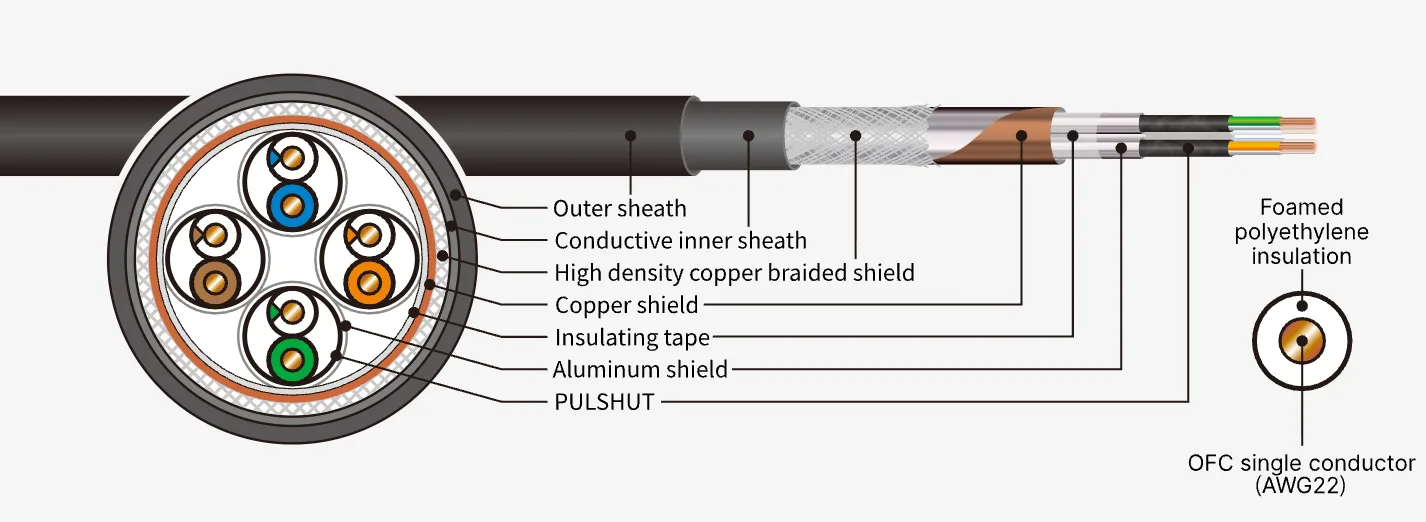

Characteristics of Hoplon
Pulshut®︎ MU: Pulshut removes radiation noise emitted by the cable itself and conduction noise flowing in from the power supply, reducing unnecessary noise in the acoustic space.
Copper shield: It has high shielding performance over the entire area, and is particularly excellent in shielding the audio band, which is important for music playback, and prevents external noise from entering.
High density copper braided shield: It boasts excellent shielding characteristics in the low frequency band, and by using it together with a copper shield, it exhibits strong shielding performance.
Aluminum shield: It has excellent shielding characteristics in the high frequency band, and is resistant to cracks when wound around paired or multi-twisted strands, and has good flexibility.
Technical Specifications
- Connector: 8P8C Modular connector(RJ45 type)
- Connector Size: W13.9mm x H53.8mm x D16.3mm
- Connector Structure: 360 degree shielding with die-cast nickel-plated zinc
- Standard: Compliant with ANSI/TIA/EIA-568-B and IEC 60603-7-5
- Outside Diameter: 10Φ(mm)
- Cable Color: Black
- Conductor Size: Single Line AWG22
- Number of conductor: Twisted Pair x 4(8)
- Conductor Material: OFC(high-pure oxygen-free copper)
- Conductor Coating: Specially developed foamed polyethylene insulation
- Drain Wire: Symmetrical structure
