D/A Converters
Camira

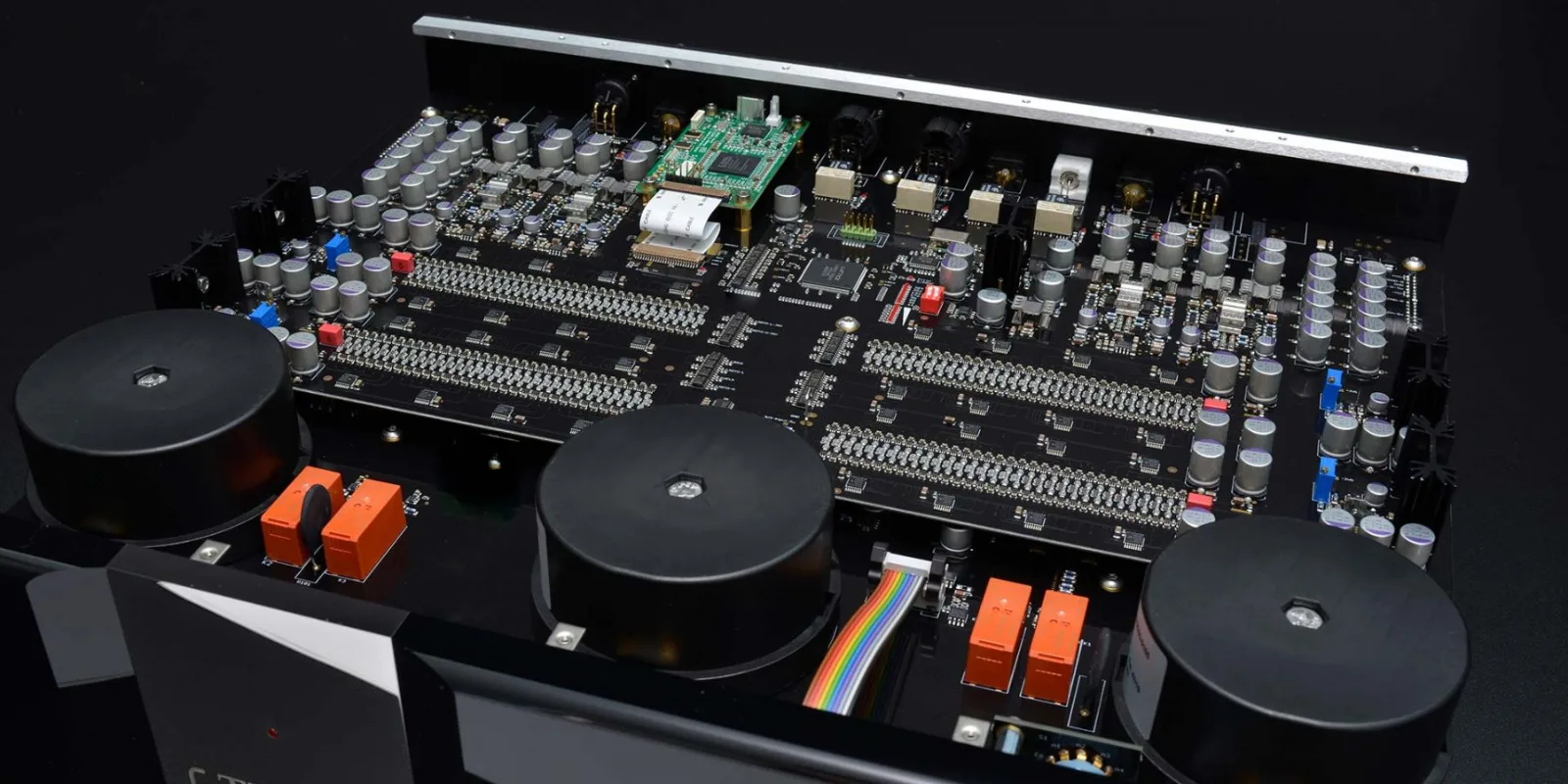

The TIDAL Camira DMC™ is a reference Digital Music Converter designed to transform digital signals into a natural, highly resolved musical experience. At its heart is a proprietary 32-bit, non-oversampling 8xR2R ladder DAC combined with TIDAL’s ASRT² Analog Signal Remediation Technology. The architecture focuses on precise timing and signal integrity without conventional oversampling or unnecessary processing. A fully discrete Class-A output stage and individually regulated power supplies complete a design focused on transparency, naturalness, and musicality.
Technical Specifications
- Feature: Reference Digital Music Converter™
- Feature: 32-bit non-oversampling 8xR2R ladder DAC
- Feature: No pre-ringing or post-ringing
- Feature: Proprietary TIDAL-Link input for compatible TIDAL streamers
- Feature: Proprietary USB-to-I²S interface directly connected to the DAC
- Feature: ASRT² Analog Signal Remediation Technology
- Feature: FPGA-based timing correlation and signal remediation
- Feature: True balanced output architecture
- Feature: No inverted signal generation through transformer outputs
- Feature: 20 ultra-low-noise independent power supplies
- Feature: 3-step input filter per channel
- Feature: 116 organic ultra-low-ESR capacitors
- 4 x S/PDIF inputs: 1 x BNC, 1 x RCA, 2 x AES/EBU XLR
- Feature: 1 x asynchronous USB Class 2 input
- Feature: Supports PCM and DSD/DXD formats
- Feature: PCM support up to 384 kHz / 24-bit
- Feature: DSD support up to DSD256
- Feature: DSD via DoP and native ASIO on Windows
- Feature: macOS and Linux driverless USB operation
- Feature: 0.01% tolerance precision resistors
- Feature: Femto-clock ultra-low-noise oscillator (-169 dB)
- Feature: Fully discrete Class-A output amplifier
- Feature: Balanced XLR and unbalanced RCA outputs
- Feature: Ultra-low-ESR organic capacitors
- Dimensions: 44 x 13 x 39 cm / 17.3 x 5.1 x 15.3"
- Weight: 12 kg / 27 lbs.
