DreamPlay XC
Kalista’s complete reference digital source: CD and SACD player, high-resolution streamer, D/A converter and digital preamplifier in one sculptural component. Powered by a dedicated dual Elektra supply and handcrafted in France.
Key Features
- Four components in one: CD/SACD player, network streamer, D/A converter and digital preamplifier
- ESS ES9038PRO D/A conversion
- Native DSD64 playback from SACD
- High-resolution streaming supporting PCM up to 384 kHz/32-bit and native DSD256
- Leedh Processing lossless digital volume control
- Balanced XLR and unbalanced RCA analogue outputs
- S/PDIF, AES/EBU and proprietary I²S digital outputs
- Built-in resampling for digital output
- Dual-band Wi-Fi and Gigabit Ethernet connectivity
- Compatible with DLNA/UPnP, Audirvāna, JPLAY, Spotify Connect, Deezer, TIDAL Connect and Qobuz Connect
- Three-inch circular touchscreen with 432 × 432 resolution
- Dedicated dual Elektra external power supply
- Available in Black Pearl and Diamond finishes, with custom finishes available by request
- Hand-soldered and assembled in France
Design & Build

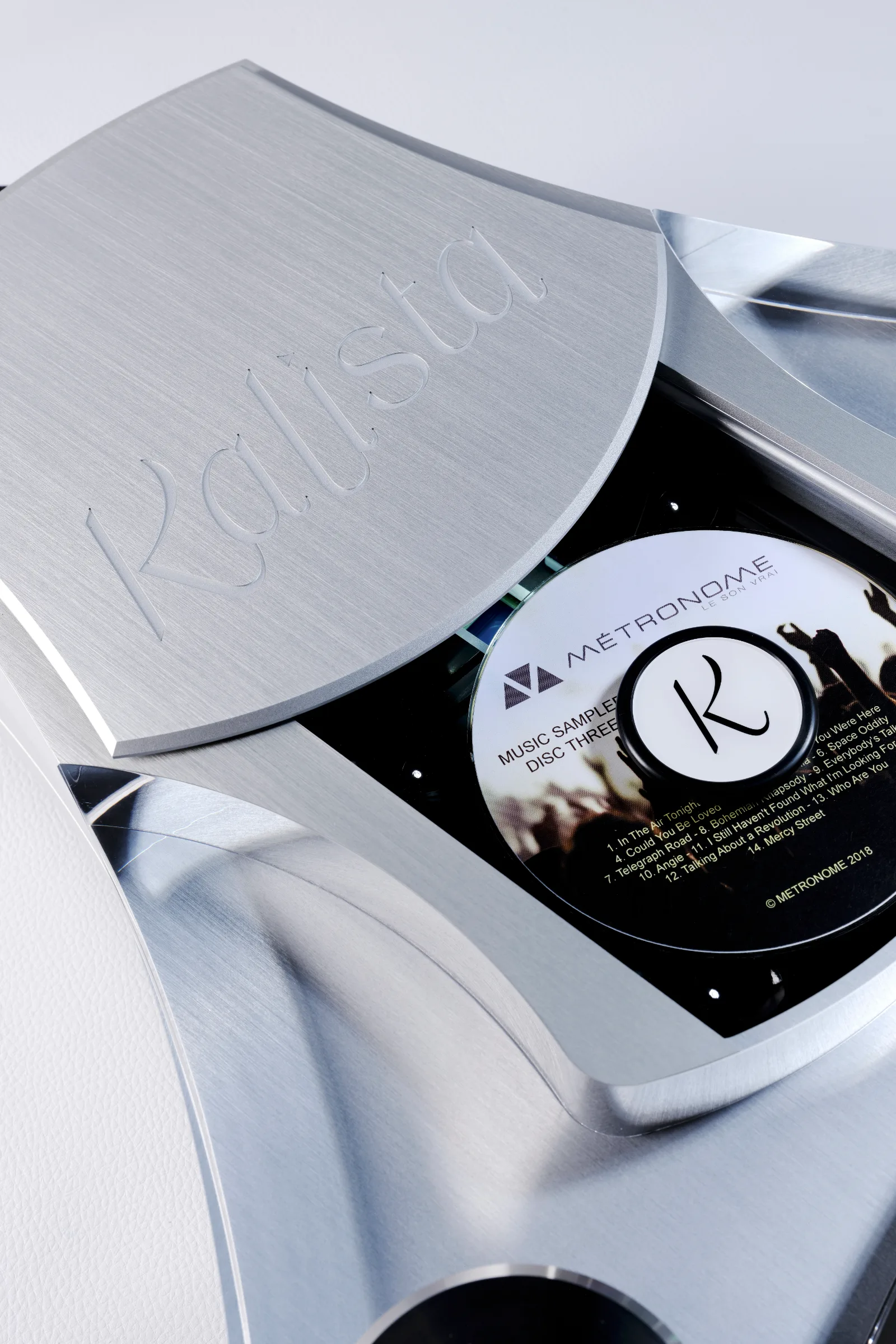

The DreamPlay XC brings Kalista’s complete digital architecture into its iconic tripod form, combining aluminium, acrylate and stainless steel to control resonance and mechanically isolate its critical components.
Its conversion circuitry and analogue output stages receive dedicated power from the dual Elektra external supply, separating sensitive audio circuits from the disc mechanism and digital processing sections. Electronic boards are hand-soldered, and every unit is assembled by Métronome Technologie’s technicians in France.
System Pairing
With disc playback, streaming, D/A conversion and Leedh Processing volume control in one component, the DreamPlay XC can serve as the centre of a reference digital system.
Its balanced XLR and unbalanced RCA outputs can be connected to a conventional preamplifier or integrated amplifier. Leedh Processing also allows the XC to drive a compatible power amplifier directly, creating an exceptionally streamlined high-end system.
Technical Specifications
| Specification | Detail |
|---|---|
| Type | CD/SACD player, network streamer, DAC and digital preamplifier |
| Disc formats | CD, SACD |
| CD playback | 44.1 kHz/16-bit |
| SACD playback | Native DSD64 |
| Converter / DAC | ESS Sabre ES9038PRO |
| Dynamic range | 132 dB |
| THD+N | –122 dB |
| Streaming formats | PCM up to 384 kHz/32-bit; native DSD up to DSD256 |
| Network connectivity | Gigabit Ethernet; dual-band 2.4/5 GHz Wi-Fi |
| Streaming protocols | DLNA/UPnP, Audirvāna, JPLAY, Spotify Connect, Deezer, TIDAL Connect, Qobuz Connect, vTuner |
| Storage connection | USB 2.0 for external storage |

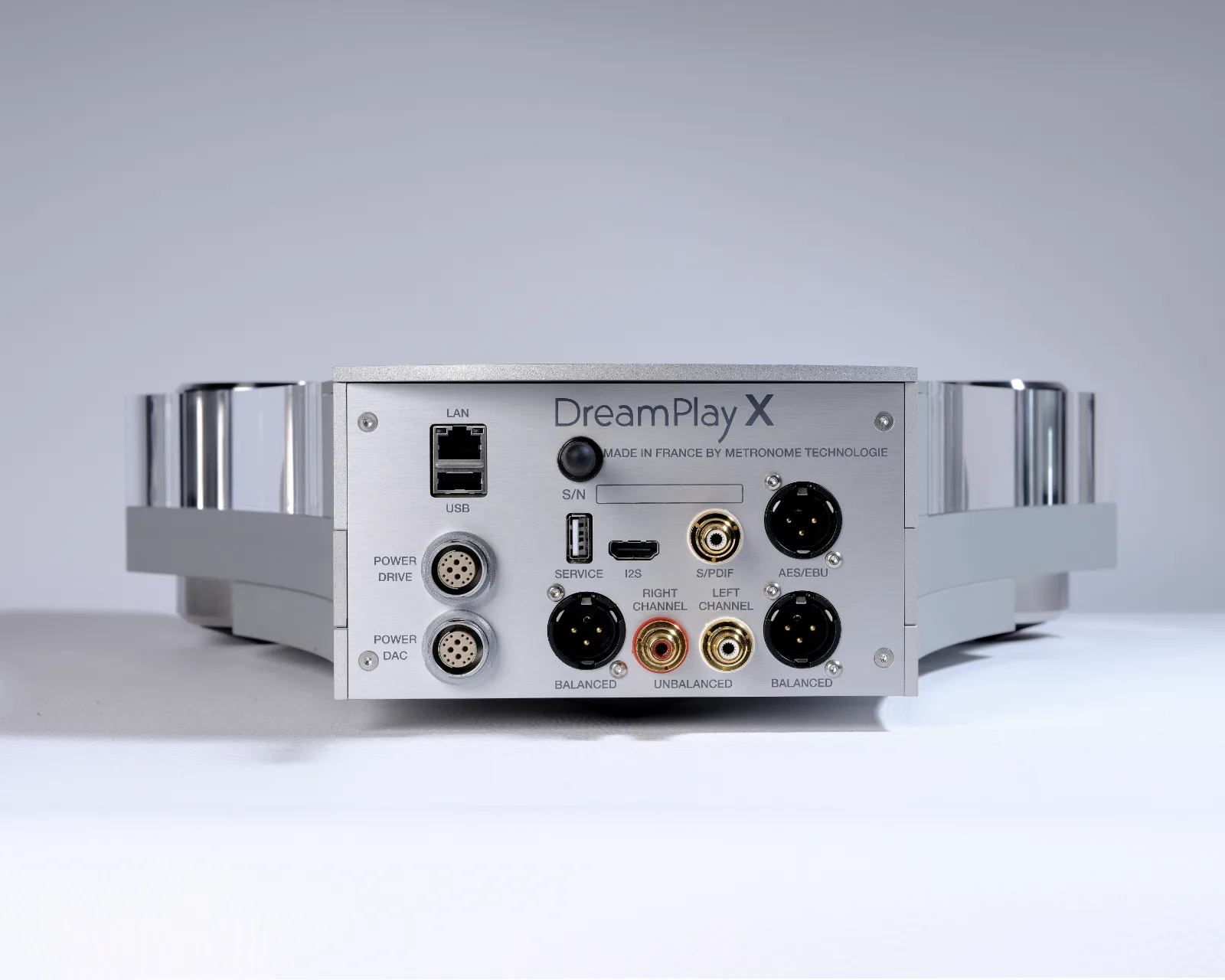

| Digital outputs | S/PDIF, AES/EBU, I²S |
| I²S output | PCM up to 384 kHz/32-bit; native DSD64–DSD256 |
| Analogue outputs | RCA (unbalanced), XLR (balanced) |
| Output impedance | RCA 100 ohms; XLR 150 ohms |
| Maximum output level | 3 V at 0 dB |
| Volume control | Leedh Processing digital volume control |
| Display | Three-inch circular touchscreen, 432 × 432 resolution |
| Power supply | External dual Elektra power supply |
| Dimensions (W × H × D) | Main unit 446 × 125 × 420 mm |
| Weight | Main unit 17.3 kg |
| Power consumption | 25 W (20 W standby) |
| Finish options | Black Pearl, Diamond; custom finishes available upon request |
| Optional accessories | Silent Base, Classic Tripod stand |
