Voro MC Cartridge

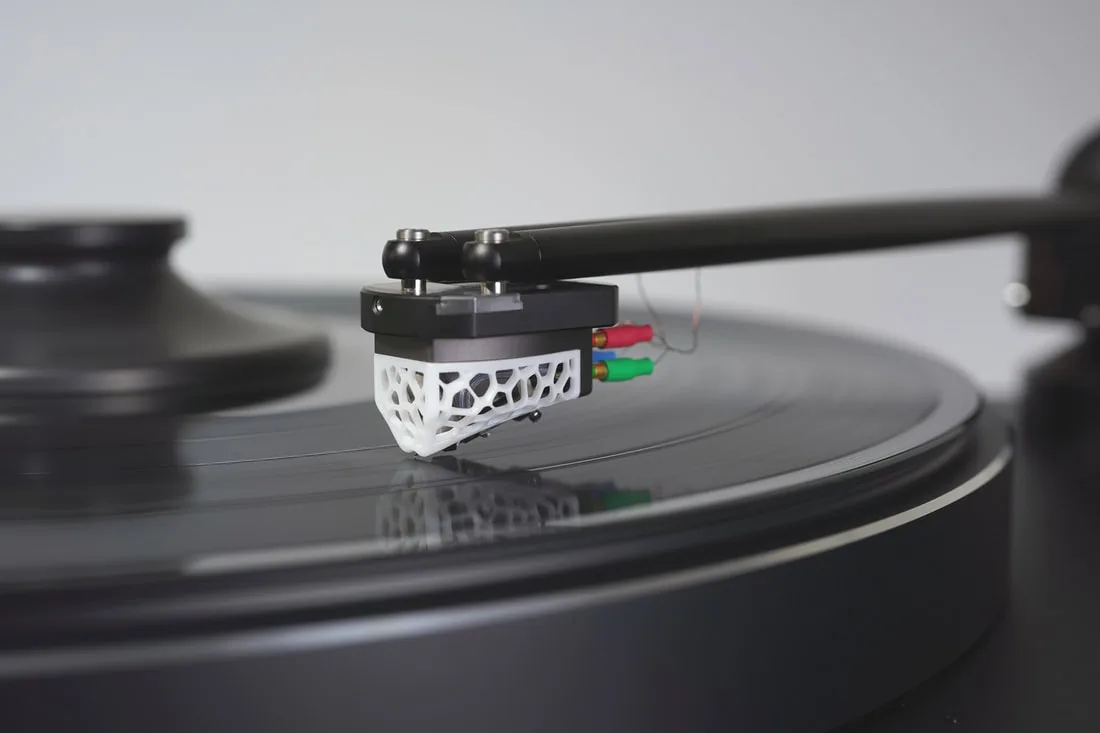

The Thales Voro combines a unique ceramic transducer with a double-layer iron core for highly dynamic and low-distortion signal conversion. Its distinctive ceramic body features an organic, Voronoi-inspired structure designed to provide high rigidity while minimizing sensitivity to airborne vibration. Three coil configurations are available to optimize compatibility with different phono stages.
Technical Specifications
- Feature: Standard
- Coil: Copper
- Impedance: 12 Ω
- Output voltage: 0.7 mV @ 5 cm/s
- Recommended load: 100–150 Ω
- Body: Ceramic / Aluminium
- Weight: 10.2 g
- Stylus: Gyger S
- Tracking force: 1.9–2.1 g
- Compliance: 12 μm/mN
- Frequency range: 20–30,000 Hz
- Feature: Low Output
- Coil: Gold
- Impedance: 8 Ω
- Output voltage: 0.4 mV @ 5 cm/s
- Recommended load: 80–120 Ω
- Body: Ceramic / Aluminium
- Weight: 10.2 g
- Stylus: Gyger S
- Tracking force: 1.9–2.1 g
- Compliance: 12 μm/mN
- Frequency range: 20–30,000 Hz
- Feature: Current Input
- Coil: Silver
- Impedance: 4 Ω
- Output voltage: 0.3 mV @ 5 cm/s
- Body: Ceramic / Aluminium
- Weight: 10.2 g
- Stylus: Gyger S
- Tracking force: 1.9–2.1 g
- Compliance: 12 μm/mN
- Frequency range: 20–30,000 Hz
