Reference² Diamond
Crystal Cable’s Reference² collection adds impedance-controlled digital cables to a complete range of analogue, phono, loudspeaker and power models. Silver-Gold² conductors and individually shielded digital pairs preserve signal integrity across an entire reference system.
Key Features
- Reference-level family within Diamond Series 2
- Proprietary Silver-Gold² conductors
- Kapton and Teflon insulation
- Silver-plated-copper shielding
- RCA and balanced XLR interconnects
- Dedicated phono interconnect

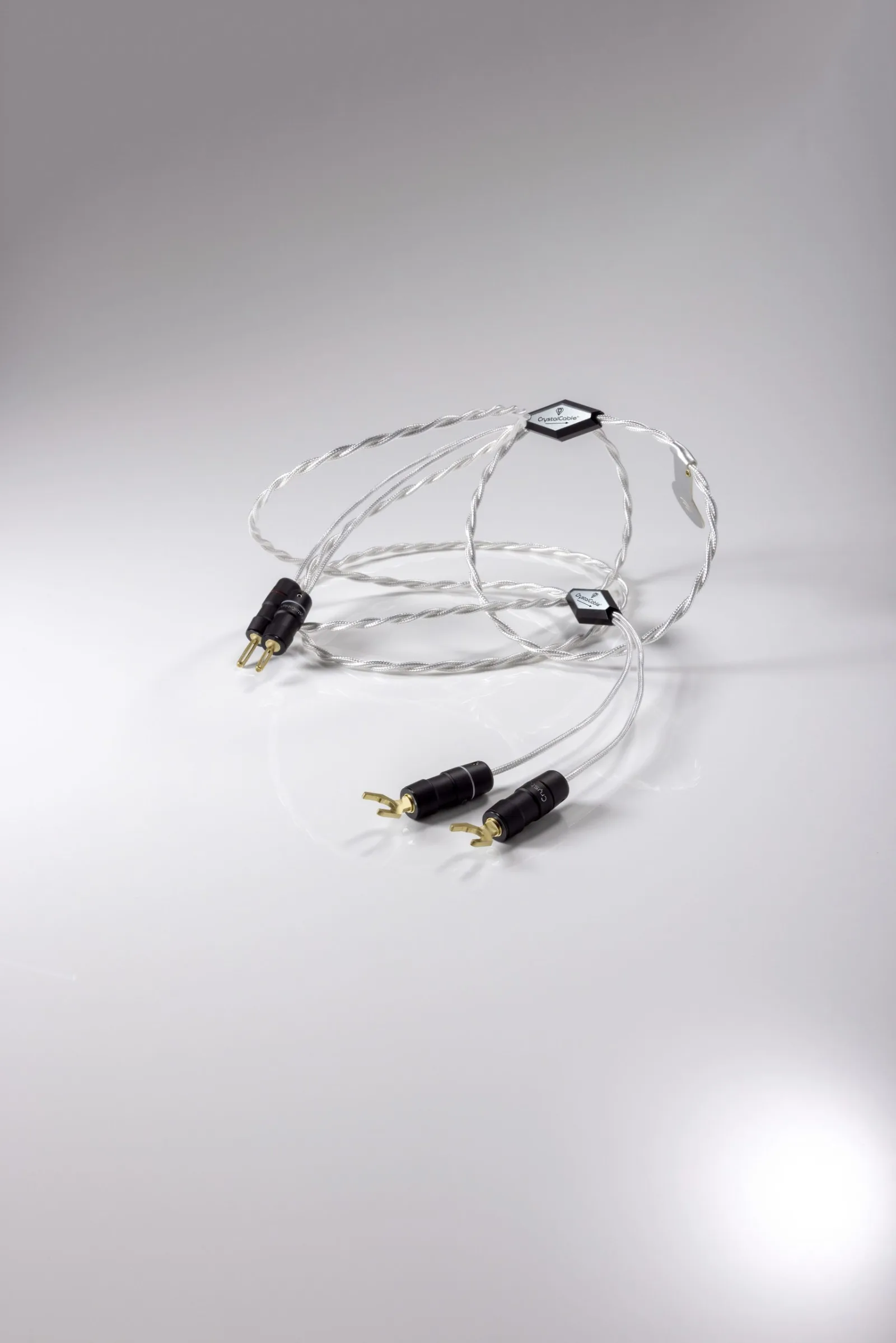

- Banana or spade loudspeaker cables
- 10 A and 16 A power cables
- Digital interconnect with quadruple-twisted-pair construction

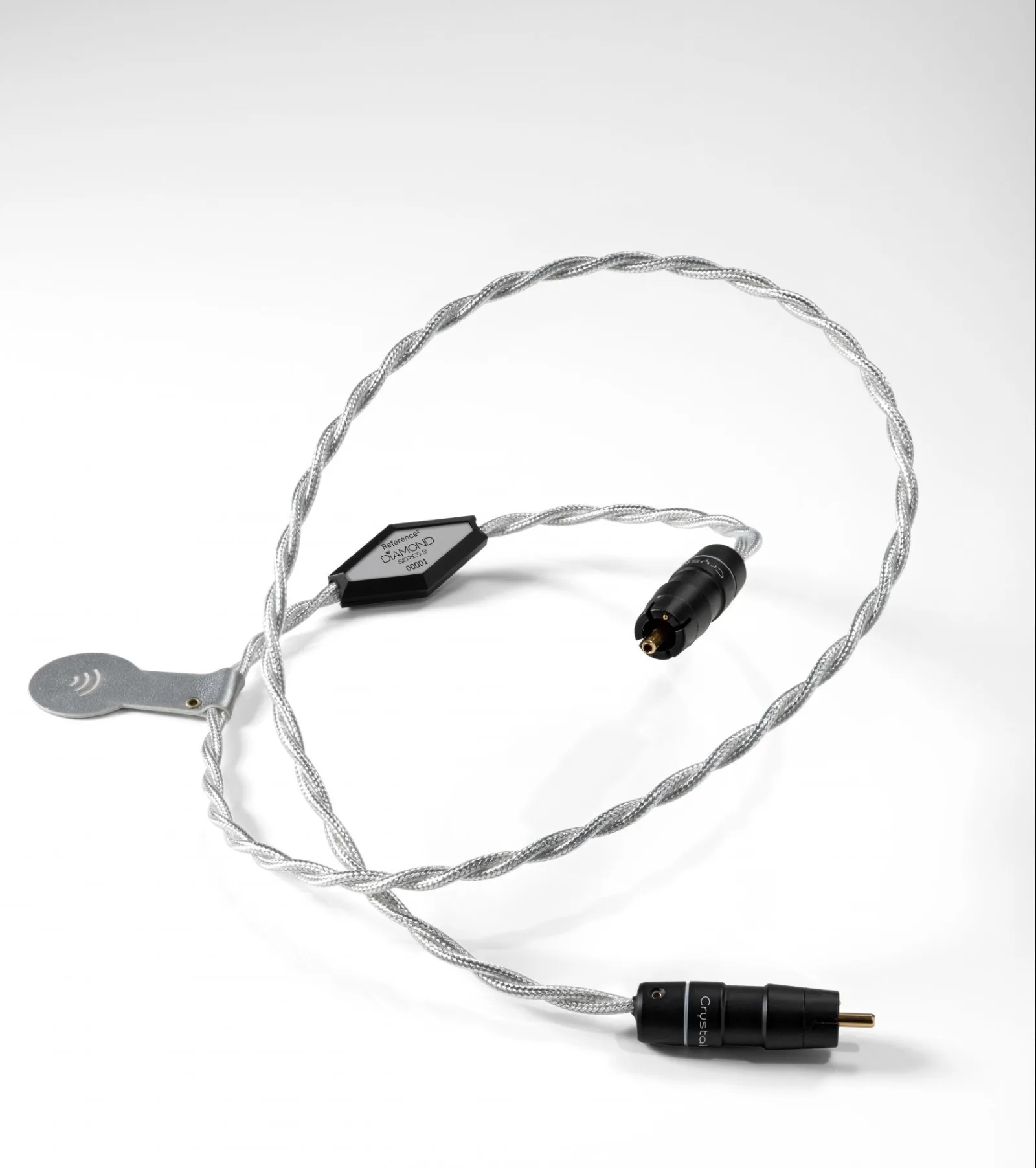

- Dedicated 75-ohm RCA/BNC digital cable
- Dedicated 110-ohm XLR AES/EBU cable
- Handcrafted in the Netherlands
Design & Build
Reference² applies Crystal Cable’s SG² Silver-Gold metallurgy to both analogue and impedance-controlled digital connections. The analogue models use coaxial geometries with Kapton and Teflon insulation, while silver-plated-copper shielding protects the signal from interference.
The digital cables employ individually shielded pairs with an additional outer shield. Their quadruple-twisted-pair construction is designed to preserve impedance and minimize externally induced noise.
System Pairing
Reference² is particularly well suited to systems combining analogue components with separate digital transports, servers, converters or clocks. RCA, BNC and XLR digital options accommodate S/PDIF and AES/EBU connections.
Matching interconnect, phono, loudspeaker and power cables allow the same conductor technology to be maintained throughout the system.
Technical Specifications
| Specification | Detail |
|---|---|
| Type | Analogue, phono, digital, loudspeaker and power cable collection |
| Series | Diamond Series 2 |
| Conductor material | Silver-Gold² |
| Analogue insulation | Kapton; Teflon |
| Digital insulation | Teflon with individually shielded pairs |
| Shielding | Silver-plated copper |
| Construction | Handcrafted |
| Country of manufacture | The Netherlands |
Available Cable Types
| Cable Type | Construction and Terminations |
|---|---|
| Interconnect | RCA: two coax; XLR: three coax |
| Phono interconnect | Four coax; RCA, XLR or straight/angled TAC‑5 |
| Loudspeaker | Two coax; banana or spade |
| Power | Three coax; 10 A or 16 A connectors |
| Digital interconnect | Quadruple twisted pair; RCA, BNC or XLR |

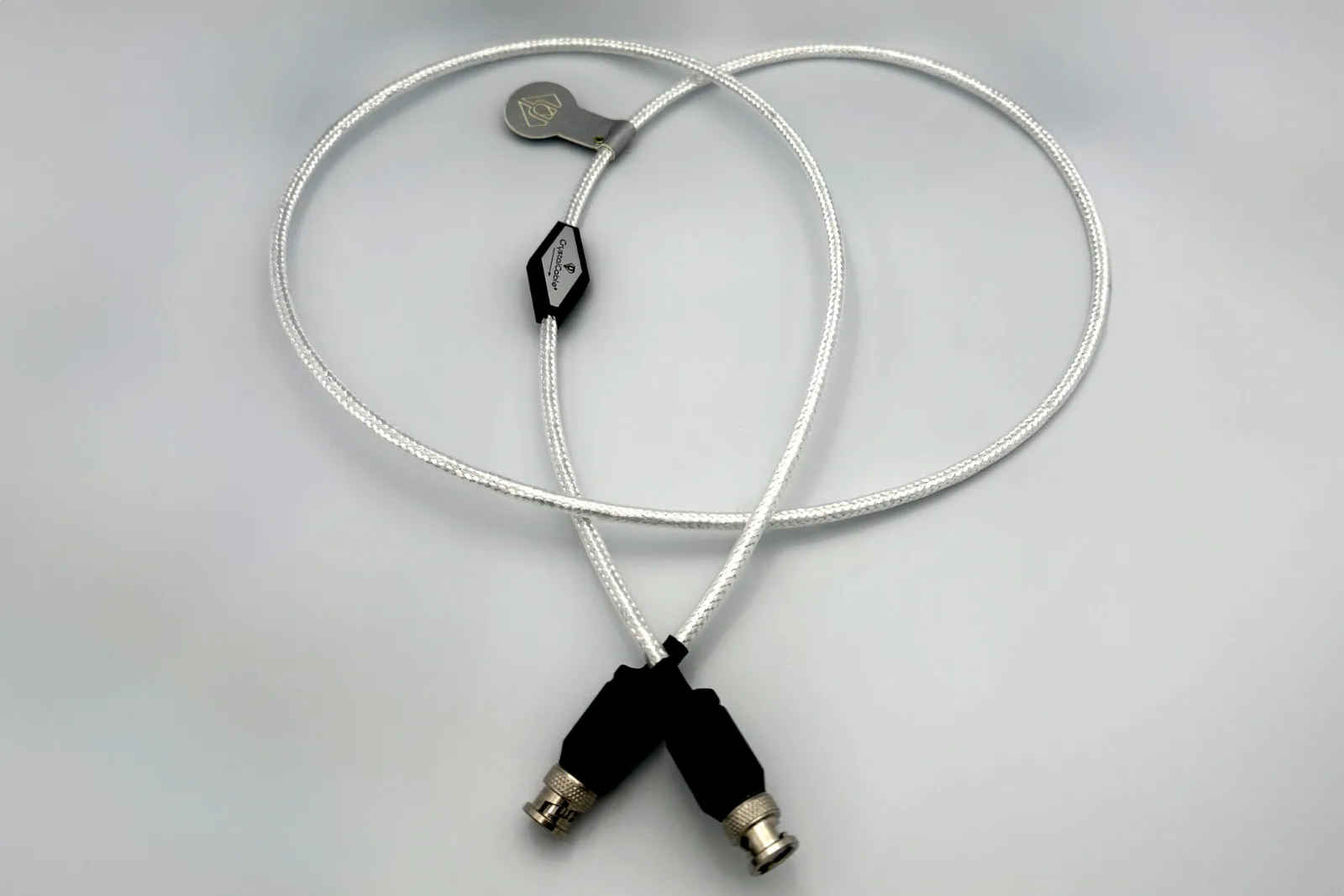

| Digital 75 ohm | RCA or BNC |
| Digital 110 ohm | XLR AES/EBU |
| AC plug options | US; EU; UK; Australia |
