Loudspeakers

Mino

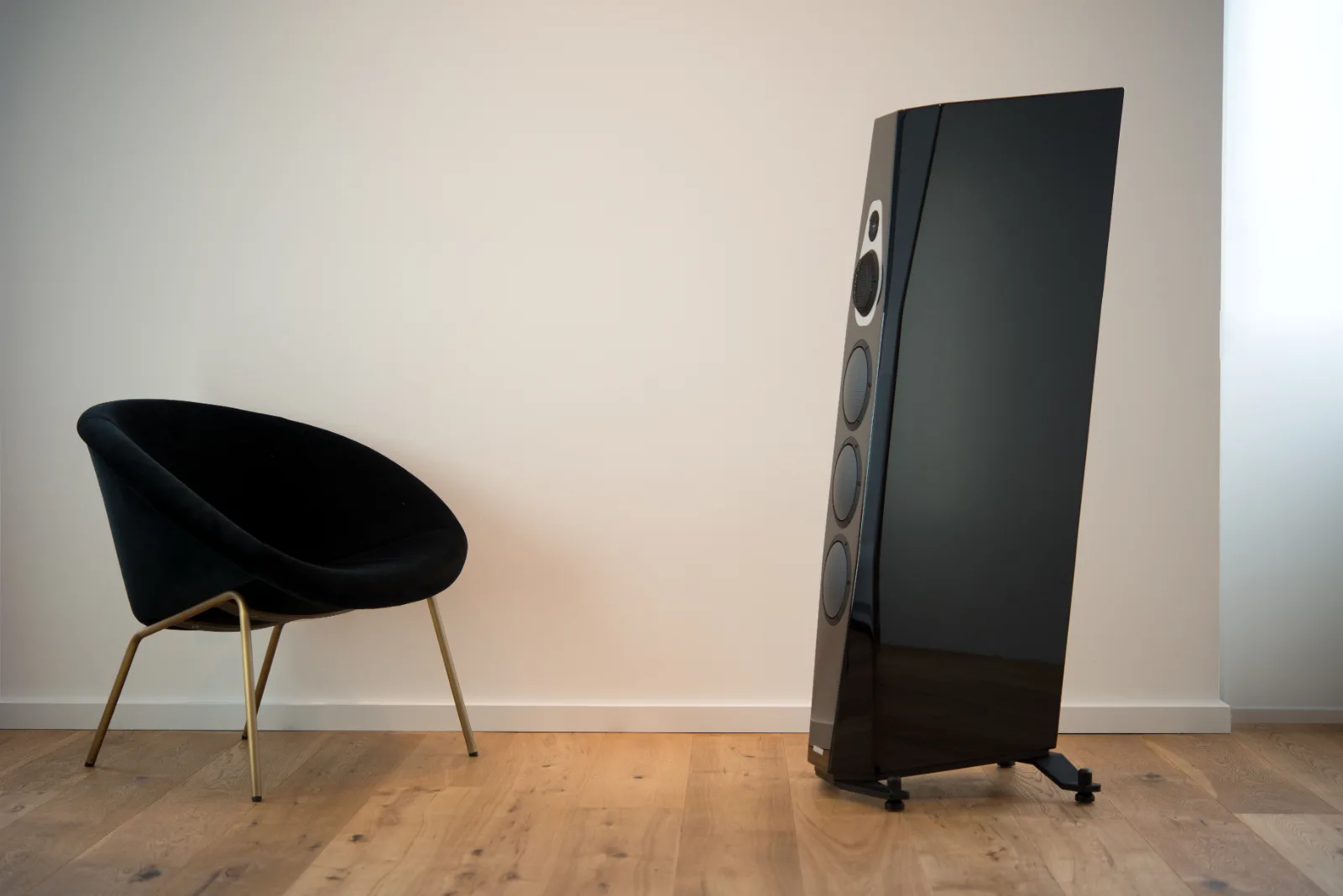

The VIMBERG Mino is a three-way full-range loudspeaker engineered for exceptional neutrality, precision, and musical expression. It offers a choice of a 30 mm Accuton Cell ceramic tweeter or the ultimate 30 mm pure diamond tweeter, available as the Mino D. Both deliver remarkable clarity and openness, with the diamond version offering an even higher level of refinement and resolution. A 90 mm Accuton Cell ceramic midrange provides exceptional speed, transparency, and control, seamlessly integrated with three 168 mm Accuton Cell woofers featuring 3D-shaped aluminum honeycomb sandwich diaphragms. Together with the dual-tune bass-reflex design, they deliver deep, fast, and exceptionally controlled bass. At the heart of the Mino is VIMBERG’s bespoke Monopulse crossover, developed specifically for its drivers and enclosure. Carefully selected Mundorf and Duelund components provide a highly linear frequency response, optimized impulse response, precise timing, and seamless integration across the entire frequency range. The aluminum-HDF hybrid construction combines a rigid aluminum structure with resonance-absorbing waterproof HDF fiber laminate, providing an exceptionally stable foundation for the drivers. A massive, precision-machined aluminum isolation stand and five-part isolation system provide outstanding stability and allow precise height adjustment on virtually any floor surface. Finished with premium Argento binding posts and high-end Mogami internal wiring, every element of the Mino reflects VIMBERG’s uncompromising approach to performance and craftsmanship.

Share this product

Technical Specifications

  • Feature: 3-way fullrange loudspeaker
  • Feature: VIMBERG™ MRD-cabinet made out of waterproof high density fiberlaminate and reinfocring aluminum elements for all drivers
  • Feature: 1 x 30 mm Accuton™ Cell ceramic tweeter
  • Feature: 1 x 90 mm Accuton™ Cell ceramic midrange woofer
  • Feature: 3 x 168 mm Accuton™ Cell woofer, long excursion design with 3D shaped honeycomb sandwich diaphragm
  • optional: 30mm Accuton™ Cell diamond tweeter (Mino D), also upgradeable anytime later
  • Feature: highend Mogami™ speaker cable wiring inside, Argento™ binding posts
  • highend crossover with VIMBERG™ monopulse technology: linear frequency response with optimized impulse response
  • Feature: exclusive use of Mundorf™ & Duelund™ components
  • Feature: dual-Tune bassreflex port design for lowest port noise and selectable F3
  • Feature: decoupling height adjustable isolation gliders and 3D-shaped installation triggers for optimized setup and placement to every floor
  • exclusive VIMBERG™ VELVETEC: Summit White, Jet Black, Slate Grey, Sonoma Orange, Amethyst and other colors on request
  • optional on request: VIMBERG™ real piano lacquer: summit white or jet black
  • nominal impedance: 4 ohm (lowest point: 3.8 ohm at 100Hz)
  • efficiency at 2.83V/1m/1KHz: 89dB
  • weight without packagaing: 2 x 72 Kg (2 x 159 lbs.)
