Brama Integrated Amplifier

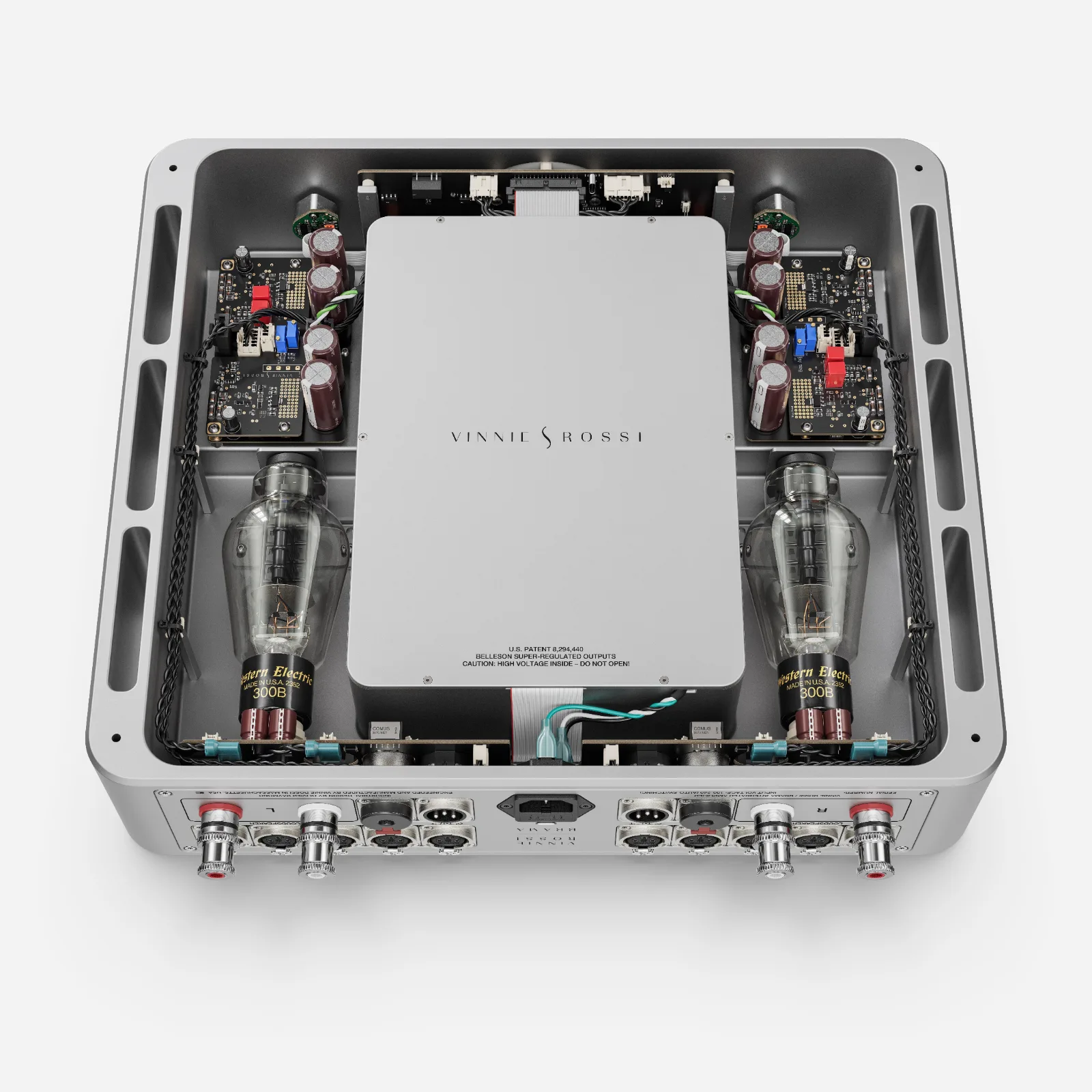

The Brama Integrated Amplifier combines the musicality of our 300B linestage with the power and control of a high-performance MOSFET output stage, bringing the performance of our Brama separates into a single elegant enclosure. At its heart is a unique dual-mono Class A linestage featuring a matched pair of legendary Western Electric WE300B triodes, dedicated solely to voltage gain. Their natural tonal beauty and exceptional musicality reveal the finest nuances of your recordings with remarkable intimacy and realism. The Class AB output stage uses two precision-matched lateral MOSFETs per rail, delivering 200W RMS per channel into 8 ohms and 400W RMS into 4 ohms, with stability into 2-ohm loads. It provides effortless control and the power to drive demanding loudspeakers with authority and precision. A 2400W power supply with patented super-regulation delivers exceptionally low noise, fast transient response, and stable current on demand. Isolated from the delicate audio circuitry, it provides a clean and quiet foundation for the music. Brama’s design embraces pure analog elegance. The front panel features a custom analog wattage gauge, solid aluminum controls, and precision Swiss rotary switches. Precision-machined from a solid block of aluminum, the seamless chassis provides excellent EMI shielding, resonance control, and heat dissipation. The Brama Remote is precision-milled from solid aluminum and finished with sapphire glass over its high-resolution display. Bluetooth connectivity provides intuitive, effortless control without interrupting your listening experience. Key Features Linestage: Dual-mono Class A design featuring matched Western Electric WE300B triodes Output Stage: Class AB design with two precision-matched lateral MOSFETs per rail Output Power: 200W RMS per channel into 8 ohms; 400W RMS per channel into 4 ohms; stable into 2-ohm loads Power Supply: 2400W high-current, ultra-low-noise design with patented super-regulation Volume Control: 100-step resistor ladder Inputs: Five balanced XLR inputs Gain: 22dB, 28dB, or 34dB Balance: 12-step left/right adjustment Input Memory: Gain and balance settings stored independently for each input Home Theater Bypass: Easy integration with AV systems Line Output: One set of volume-controlled balanced XLR outputs Speaker Outputs: WBT Nextgen 0710-Ag binding posts Power Gauge: Custom analog RMS wattage meter for 8-ohm and 4-ohm operation Brama Link: Trigger output or direct interface with Brama Monoblocks USB-C: Firmware updates Chassis: Precision-machined from a solid block of aluminum Remote: Bluetooth, 2.4" high-resolution LCD with sapphire glass AC Input: IEC 320-C14 socket with integrated fuse holder Protection: Designed for stable operation with demanding speaker loads Front Panel Left Control: 24-position Swiss rotary encoder with magnetic sensing and pushbutton for power. Right Control: 48-position Swiss rotary encoder with magnetic sensing and pushbutton for mute. Wattage Gauge: Custom analog RMS power meter. Gauge Glass: Sapphire crystal for clarity and durability. Rear Panel Inputs: Five balanced XLR inputs; RCA-to-XLR adapters included. Line Output: One set of volume-controlled balanced XLR outputs. Speaker Outputs: WBT Nextgen 0710-Ag binding posts. USB-C: Firmware updates. Brama Link: Trigger output or direct interface with Brama Monoblocks. AC Input: IEC 320-C14 socket with integrated fuse holder. Remote Control Display: 2.4" high-resolution LCD with sapphire glass. Connectivity: Bluetooth with no line-of-sight limitations. Battery: User-replaceable 3.7V rechargeable Li-ion battery. Charging: USB-C. Construction: Precision-milled from a solid block of aluminum.
